Most of the hot air circulation in the box, high thermal efficiency, energy saving. The utility model has the advantages of forced ventilation, an adjustable air distribution plate is arranged in the box, the materials are dried evenly, and the heat source can be steam, hot water, electricity and far infrared.
Most of the hot air circulation in the box, high thermal efficiency, energy saving. The utility model has the advantages of forced ventilation, an adjustable air distribution plate is arranged in the box, the materials are dried evenly, and the heat source can be steam, hot water, electricity and far infrared. The whole machine has low noise and balanced operation. Automatic temperature control, easy installation and maintenance. Wide Range of application, can dry all kinds of materials, is a general drying equipment.
Hot Air circulation oven is suitable for curing, drying and dehydration of materials and products in pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry, etc. Such as raw materials, Chinese, medicine, Chinese herbal pieces, extract, powder, granules, granules, granules, water pills, packaging bottles, pigments, dyes, dehydrated vegetables, dried fruits, sausages, plastic resin, electrical components, baking paint, etc.
1. For the heating source. there are two kinds; the steam, and the electrecal or far infrared steam for our users to choose.
2. The temperatures to be used; steam heating50~130℃, Max.140℃.
3. The moisture while using the electrical or temperatures: 50~300℃.
4. There are the automatic control system and the computer control system for users's election.
5. Commonly used steam pressure 0.2~0.8Mpa (2~8kg/cm²)
6. If the electrical heating and type one, the calculation is 15KW, and the pra ctical use is 5~8KW/h.
7. The special requirements should be indicated at thetime of order.
8. The price for the non-standard oven should be consulted.
9. The use temperatures more thean 140℃ and less than 60℃ should be indicated at the time of order.
10. The ovens and baking plates made bu our factory are uniform in the dimensions, and can be exchanged each other.

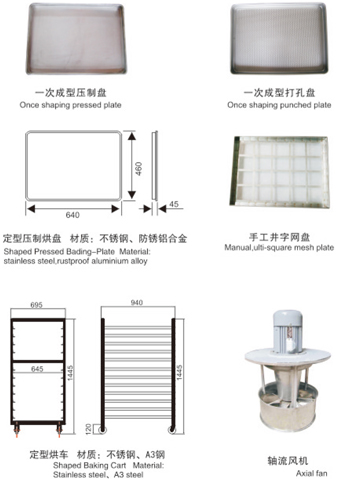

11. The baking plte dimensions: 460 × 640 × 45mm.

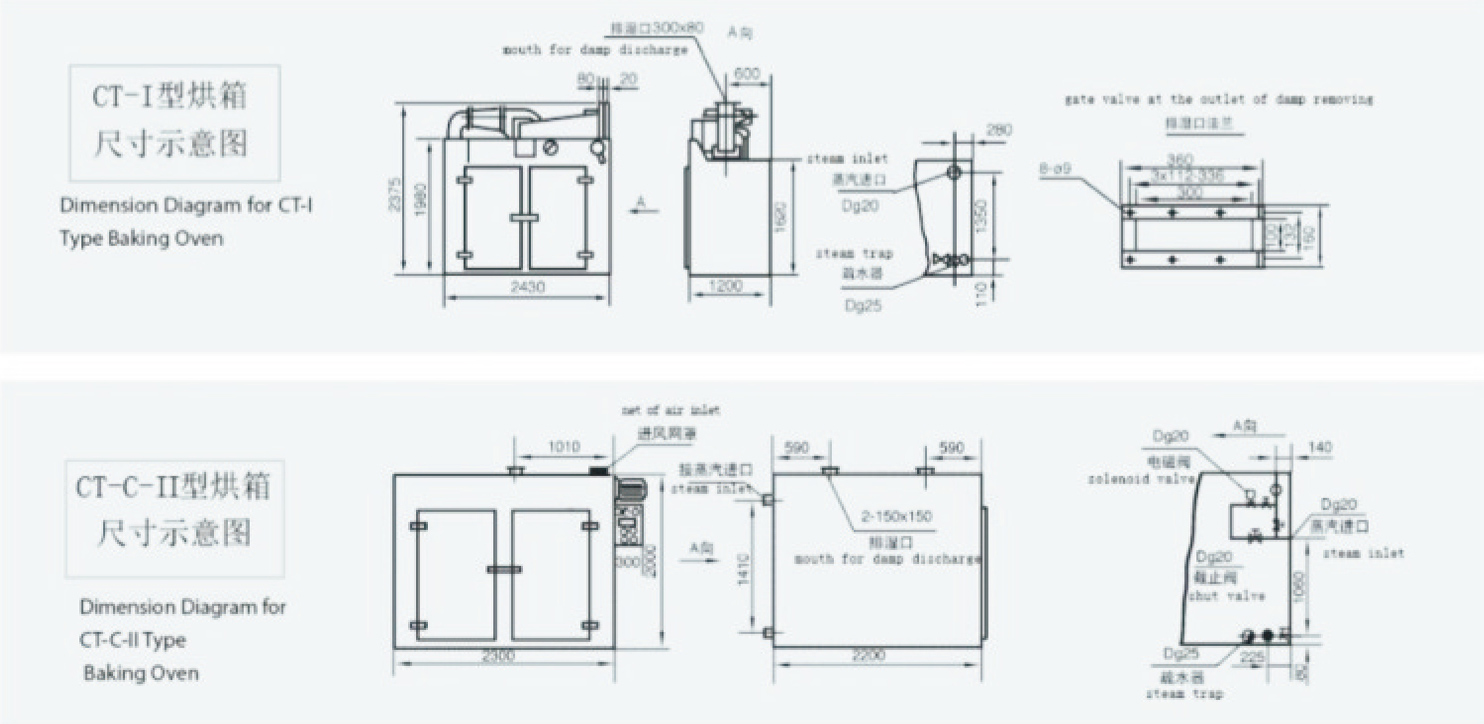

| Model | Drying capacity per drying (kg) | Power (kw) | Steam consumption (kg/h) | Radiatoarea (m²) | Fan power (m³/h) | Electric Heating (KW) | Equipped drying cart | Overall (W × D × H) | Drying pallet tobe equipped | Weight (KG) |
| CT-Ⅰ | 120 | 1.1 | 20 | 20 | 2800 | 15 | 48 | 2430 × 1200 × 2375 | 2 | 1200 |
| CT-Ⅱ | 240 | 2.2 | 40 | 40 | 5200 | 30 | 96 | 2430 × 2200 × 2433 | 4 | 1500 |
| CT-Ⅲ | 360 | 3 | 60 | 80 | 8000 | 45 | 144 | 3430 × 2200 × 2620 | 6 | 2000 |
| CT-Ⅳ | 480 | 4 | 80 | 100 | 9800 | 60 | 192 | 4460 × 2200 × 2620 | 8 | 2300 |
| CT-C-O | 25 | 0.45 | 5 | 5 | 3450 | 6–9 | 16 | 1130 × 1100 × 1750 | 0 | 800 |

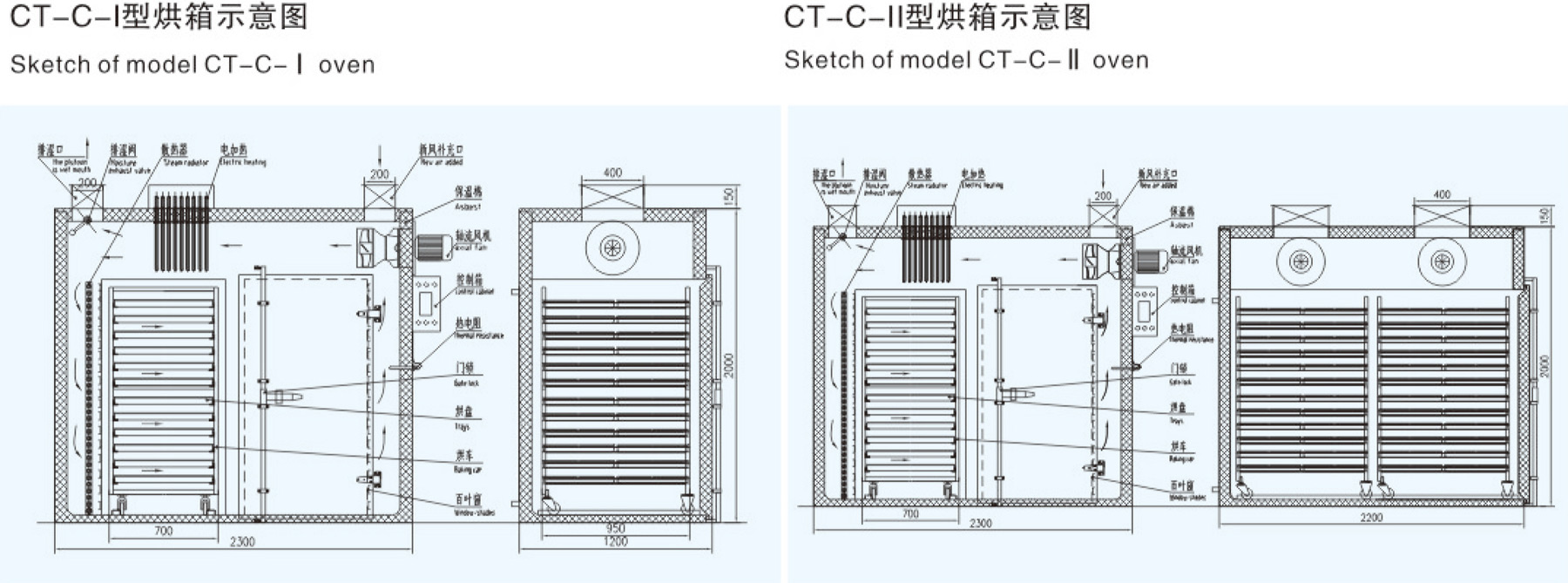

| CT-C-Ⅰ | 120 | 0.45 | 18 | 20 | 3450 | 15 | 48 | 2300 × 1200 × 2000 | 2 | 1500 |
| CT-C-Ⅱ | 240 | 0.9 | 36 | 40 | 6900 | 30 | 96 | 2300 × 2200 × 2000 | 4 | 1800 |
| CT-C-ⅡA | 240 | 0.9 | 36 | 40 | 6900 | 30 | 96 | 4460 × 1200 × 2290 | 4 | 1800 |

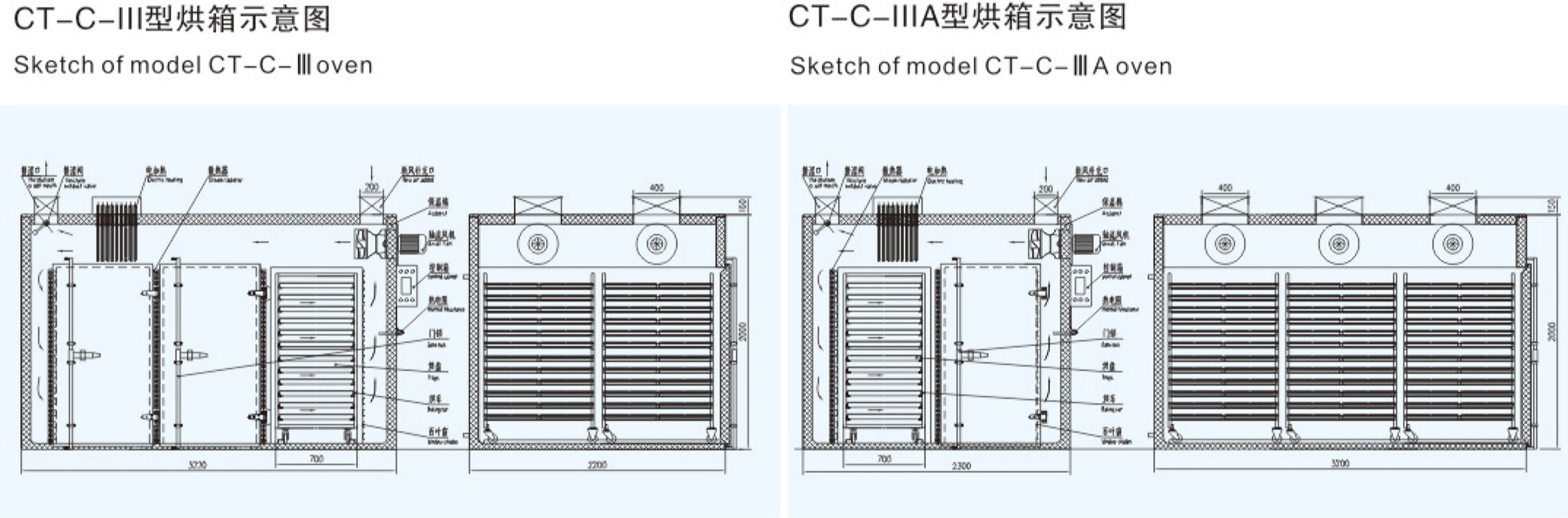

| CT-C-Ⅲ | 360 | 1.35 | 54 | 80 | 10350 | 45 | 144 | 3430 × 2200 × 2000 | 6 | 2200 |
| CT-C-ⅢA | 360 | 1.35 | 54 | 80 | 10350 | 45 | 144 | 2300 × 3200 × 2000 | 6 | 2200 |

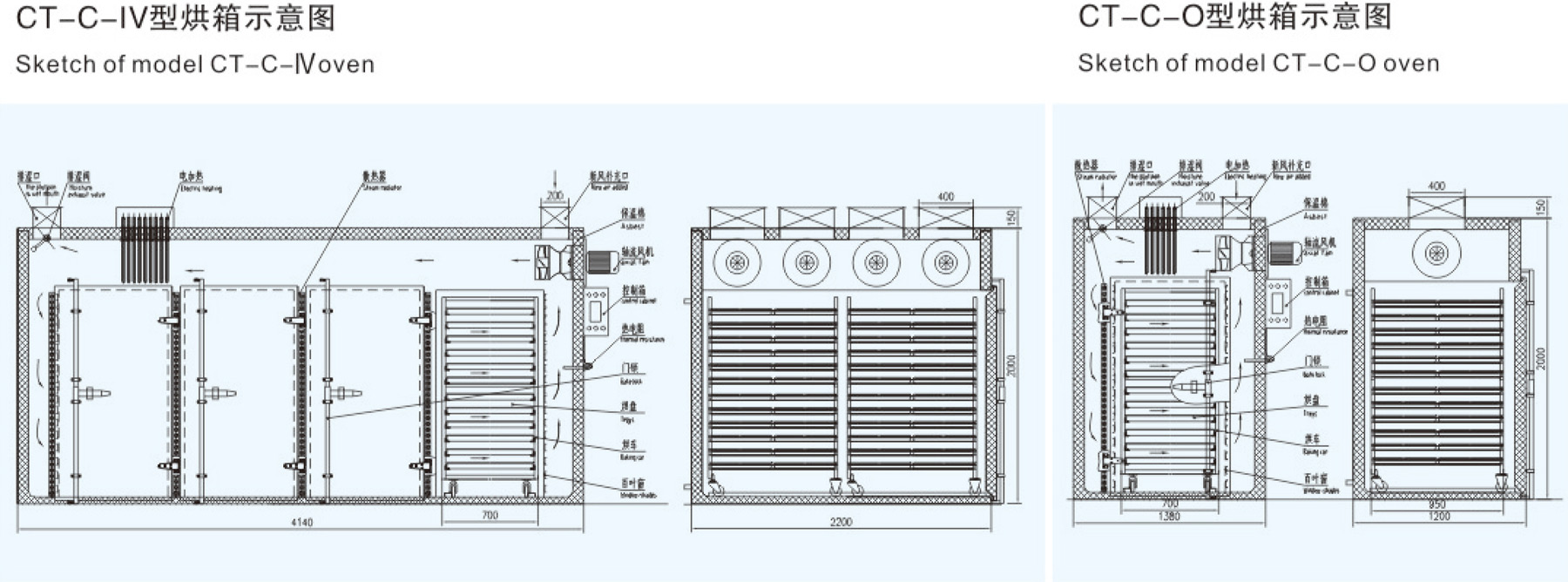

| CT-C-Ⅳ | 480 | 1.8 | 72 | 100 | 13800 | 60 | 192 | 4460 × 2200 × 2290 | 8 | 2800 |

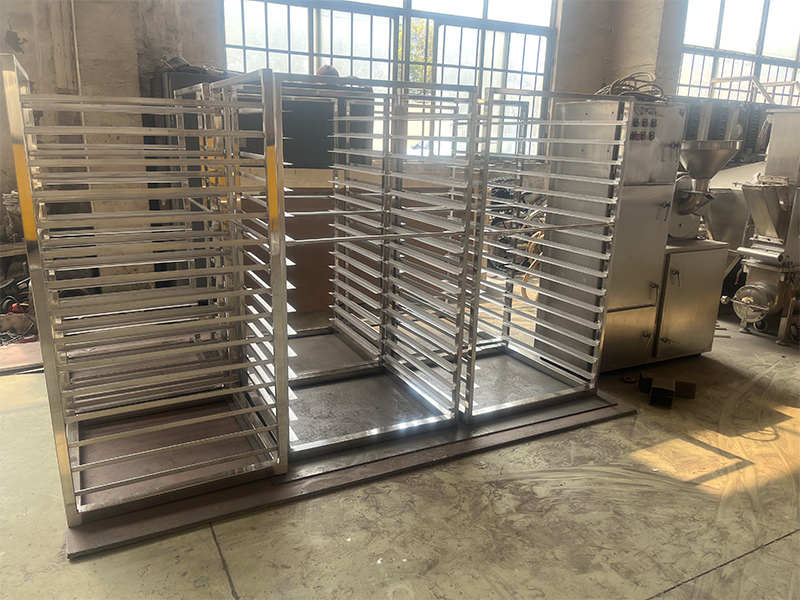

The material of the outer wall of the box body is A3 steel and stainless steel; the material of the inner wall is Aluminum Alloy and stainless steel; the material of the oven car is A3 steel and stainless steel; the material of the oven plate is aluminum, stainless steel and galvanized sheet.
