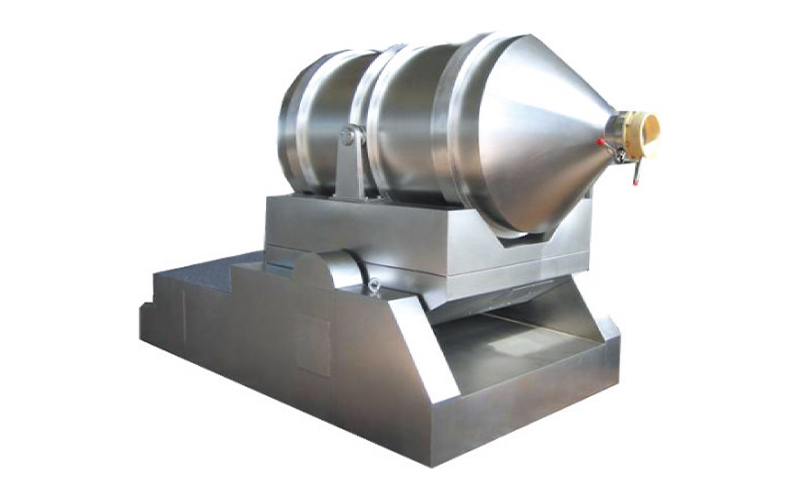

The two-dimensional mixer is mainly composed of rotating drum, swing frame and frame. The rotating drum is installed on the swing frame, supported by four rollers and axially positioned by two stop wheels. Among the four support rollers, two transmission wheels are driven by the rotating power system to rotate the rotating drum. The swing frame is driven by a group of crank swing rod mechanisms, which are on the frame, and the swing frame is supported on the frame by bearing components.
The two-dimensional mixer is mainly composed of rotating drum, swing frame and frame. The rotating drum is installed on the swing frame, supported by four rollers and axially positioned by two stop wheels. Among the four support rollers, two transmission wheels are driven by the rotating power system to rotate the rotating drum. The swing frame is driven by a group of crank swing rod mechanisms, which are on the frame, and the swing frame is supported on the frame by bearing components.
● The drum of EyH two-dimensional mixer can carry out two movements at the same time, one is the rotation of the drum, and the other is the swing of the drum with the swing frame. While the mixed materials rotate, overturn and mix with the rotating drum in the rotating drum, they also mix back and forth with the swing of the rotating drum. Under the joint action of these two movements, the materials are fully mixed in a short time. EyH two-dimensional mixer is suitable for mixing all powder and granular materials.
| Model | Volume (L) | Loading coefficient | Charge weight (kg) | Overall dimensions (mm) | Power (kw) | ||||||
| A | B | C | D | M | H | Rotate | Swing | ||||
| EYH100 | 100 | 0.5 | 40 | 860 | 900 | 200 | 400 | 1000 | 1500 | 1.1 | 0.75 |
| EYH300 | 300 | 0.5 | 75 | 1000 | 1100 | 200 | 580 | 1400 | 1650 | 1.1 | 0.75 |
| EYH600 | 600 | 0.5 | 150 | 1300 | 1250 | 240 | 720 | 1800 | 1850 | 1.5 | 1.1 |
| EYH800 | 800 | 0.5 | 200 | 1400 | 1350 | 240 | 810 | 1970 | 2100 | 1.5 | 1.1 |
| EYH1000 | 1000 | 0.5 | 350 | 1500 | 1390 | 240 | 850 | 2040 | 2180 | 2.2 | 1.5 |
| EYH1500 | 1500 | 0.5 | 550 | 1800 | 1550 | 240 | 980 | 2340 | 2280 | 3 | 1.5 |
| EYH2500 | 2500 | 0.5 | 950 | 2200 | 1850 | 240 | 1160 | 2760 | 2600 | 4 | 2.2 |
| EYH3000 | 3000 | 0.5 | 1100 | 2400 | 1910 | 280 | 1220 | 2960 | 2640 | 5 | 4 |
| EYH5000 | 5000 | 0.5 | 1800 | 2700 | 2290 | 300 | 1440 | 3530 | 3000 | 7.5 | 5.5 |
| EYH10000 | 10000 | 0.5 | 3000 | 3200 | 2700 | 360 | 1800 | 4240 | 4000 | 15 | 11 |
| EYH12000 | 12000 | 0.5 | 4000 | 3400 | 2800 | 360 | 1910 | 4860 | 4200 | 15 | 11 |
| EYH15000 | 15000 | 0.5 | 5000 | 3500 | 3000 | 360 | 2100 | 5000 | 4400 | 18.5 | 15 |
