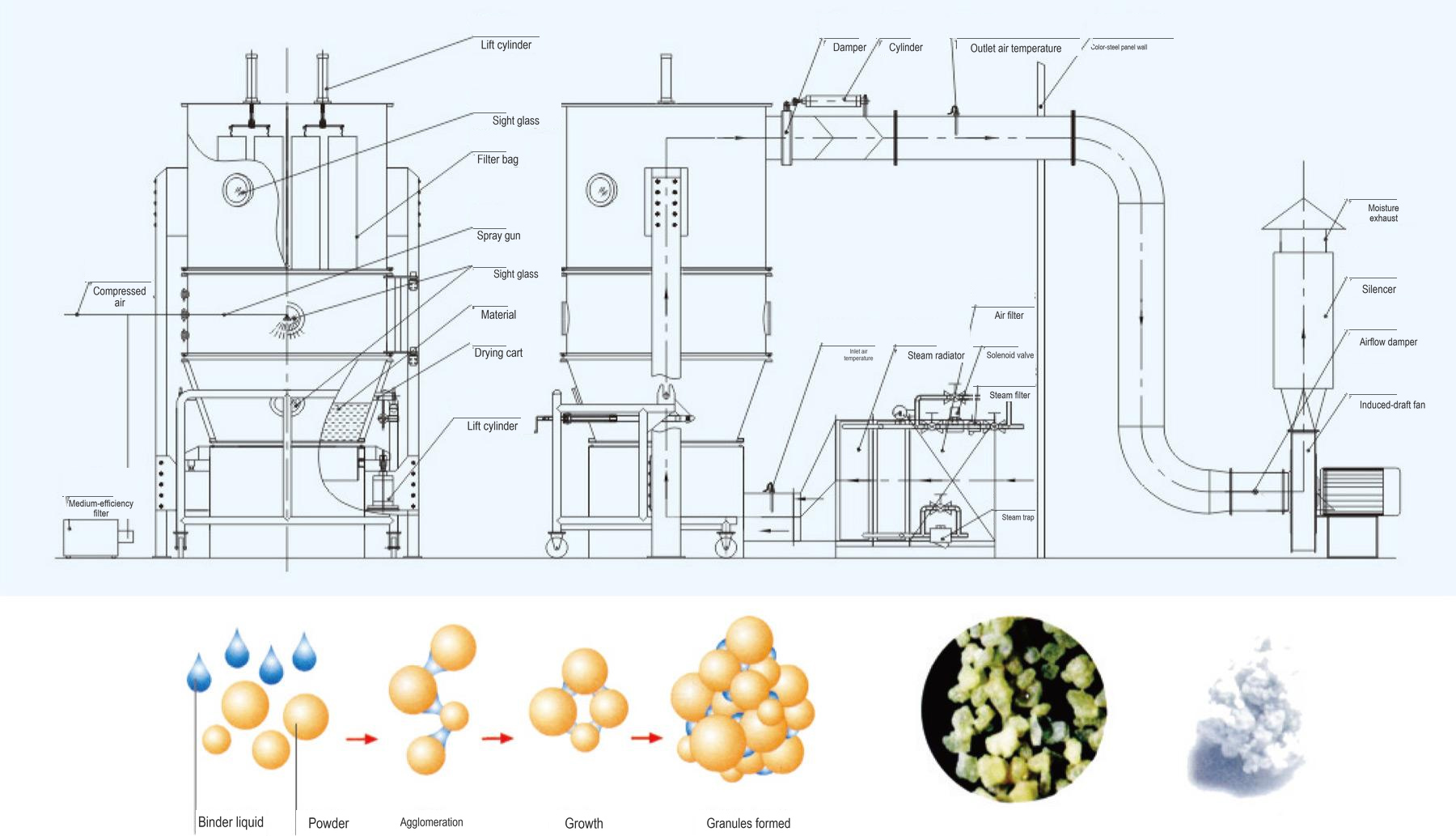

The powder particles of the material are in the state of boiling fluidization in the raw material container (fluidized bed), are preheated and mixed by heated air after being purified, and the adhesive solution is atomized and sprayed, so that some particles are aggregated into agglomerates containing the adhesive, due to the drying of hot air, the moisture in the pellets evaporates and the binder solidifies. This process is repeated to form ideal, uniform porous spherical particles.
The powder particles of the material are in the state of boiling fluidization in the raw material container (fluidized bed), are preheated and mixed by heated air after being purified, and the adhesive solution is atomized and sprayed, so that some particles are aggregated into agglomerates containing the adhesive, due to the drying of hot air, the moisture in the pellets evaporates and the binder solidifies. This process is repeated to form ideal, uniform porous spherical particles.
● Through the powder granulation, improve the flow, reduce dust flying
● Through the powder granulation, improve its solubility
● MIXING --- Harvard drying --- In one machine (one-step granulation)
● Adopt antistatic filter material, safe operation of the equipment
● The adhesive atomizer adopts multi-fluid Spray Gun, the atomizer is even and the qualified rate of the finished product is greatly improved
● The equipment has no dead angle, the loading and unloading material is light, quick and clean
1. Pharmaceutical granulation and coating
Granulation:
Granules for tablet pressing, granule and capsule
Coating: Granule, pill protective layer, color preparation, sustained release, film, Enteric Coating, coating
2. Food Granulation and coating
Granulated sugar, coffee, cocoa powder, cream, powdered fruit juice, amino acids, flavourings, puffed foods
3. Granulation of pesticide, pigment and dye
4. Drying of powder, granule and block materials
| Item | Unit | Type | |||||||||
| 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | |||
| Container | Volume | L | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| Diameter | mm | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| Capability | Min | kg | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 |
| Max | kg | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | |
| Fan | Capacity | m³/h | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
| Pressure | mmH₂O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | |
| Power | kw | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
| Steam expenditure | kg/h | 15 | 23 | 42 | 70 | 140 | 211 | 282 | 366 | 451 | |
| Compressde sir expenditure | m³/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 | |
| Weight of the main body | kg | 500 | 700 | 900 | 1000 | 1100 | 1300 | 1500 | 1800 | 2000 | |
| Steam pressure | Mpa | 0.3~0.6 | |||||||||
| Temperature | ℃ | Adjustable from ambient to 120℃ | |||||||||
| Woring time | Min | 45–90 (Decided in accordance with the properties of raw materials) | |||||||||
| Field | % | ≥99 | |||||||||
| Nise | dB (A) | When installation, main machine is separated form fan, noise ≤75dB(A) | |||||||||
| Size (LxWxH) | m | 1.0 × 0.6 × 2.1 | 1.2 × 0.7 × 2.3 | 1.25 × 0.9 × 2.5 | 1.6 × 1.1 × 2.5 | 1.85 × 1.4 × 3 | 2.2 × 1.65 × 3.3 | 2.34 × 1.7 × 3.8 | 2.8 × 2.0 × 4.0 | 3 × 2.25 × 4.4 | |
