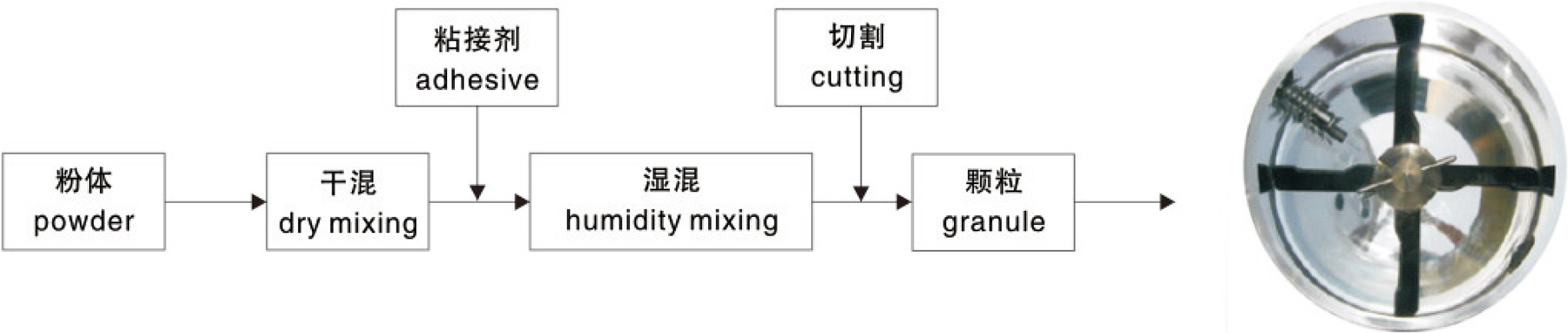

The raw powder and the binder are fully mixed in the bottom of the cylinder to form a moist soft material, which is then cut into uniform wet particles by high-speed pulverizing slurry placed on the side.
The raw powder and the binder are fully mixed in the bottom of the cylinder to form a moist soft material, which is then cut into uniform wet particles by high-speed pulverizing slurry placed on the side.

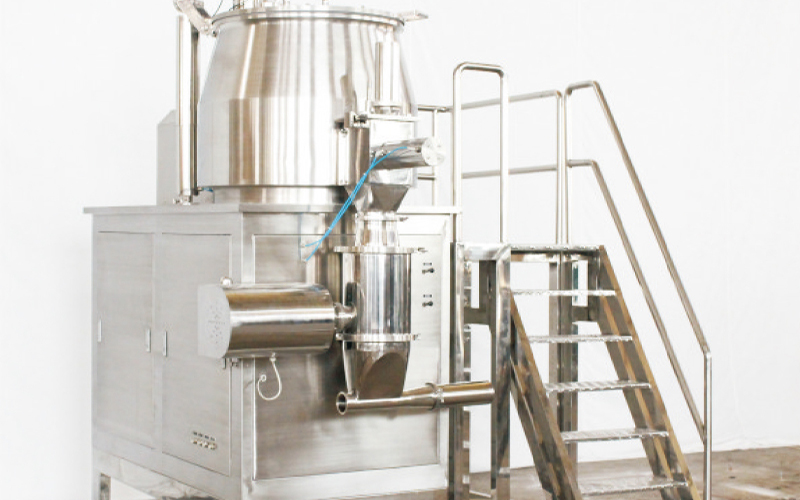

● The machine adopts horizontal barrel(cone) structure. Its structure is reasonable.
● The inner surface of equipment has no dead corner. It works at sealed state and conforms to the requirements of GMP.
● Short granulating time, high efficiency and energy saving
● The character of granule is uniform and the fluidization of granule is good. It provides ideal granule material to tablet pressing procedure.
● Compared with traditional process, it can reduce 25% of binder and shorten drying time too.
● Each batch needs 2 minutes to dry mixing and 1-4 minutes to granulating. Compared with traditional process, its efficiency can raise 4-5 times.
● Whole operation has strict safe protective measures.
● It can mix uniformly even when the gravity difference between main material and excipient is very big, without the phenomenon of delamination.
| Item | 7/2.5 | 10 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 600 | 800–1500 |
| Capacity (Kg/batch) | 0.3–1 | 3 | 15 | 35 | 50 | 60 | 80 | 100 | 135 | 200 | By lient |
| Granules size (Mesh) | 20–80 | ||||||||||
| Working time (min) | 5–7 | ||||||||||
| Container volume (L) | 7/2.5 | 10 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 600 | |
| Mixing power (Kw) | 0.75 | 2.2 | 4/5.5 | 6.5/8 | 6.5/8 | 11/14 | 11/14 | 13/16 | 18.5/22 | 22/28 | |
| Cutting power (Kw) | 0.75 | 1.1 | 1.3/1.8 | 2.4/3 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 | |
| Mixing speed (r/min) | 30–1000 | 30–600 | 200/400 | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 | |
| Cutting speed (r/min) | 300–3000 | 1500/3000 | |||||||||
| Pressure of compressed air (Mpa) | 0.3–0.6 | ||||||||||
| Consumption of compressed air (m³/min) | 0.1 | 0.11 | 0.13 | 0.2 | 0.25 | 0.25 | 0.3 | 0.4 | 0.4 | ||
| Weight (Kg) | 150 | 300 | 400 | 800 | 900 | 1200 | 1500 | 1550 | 1650 | 1800 | |

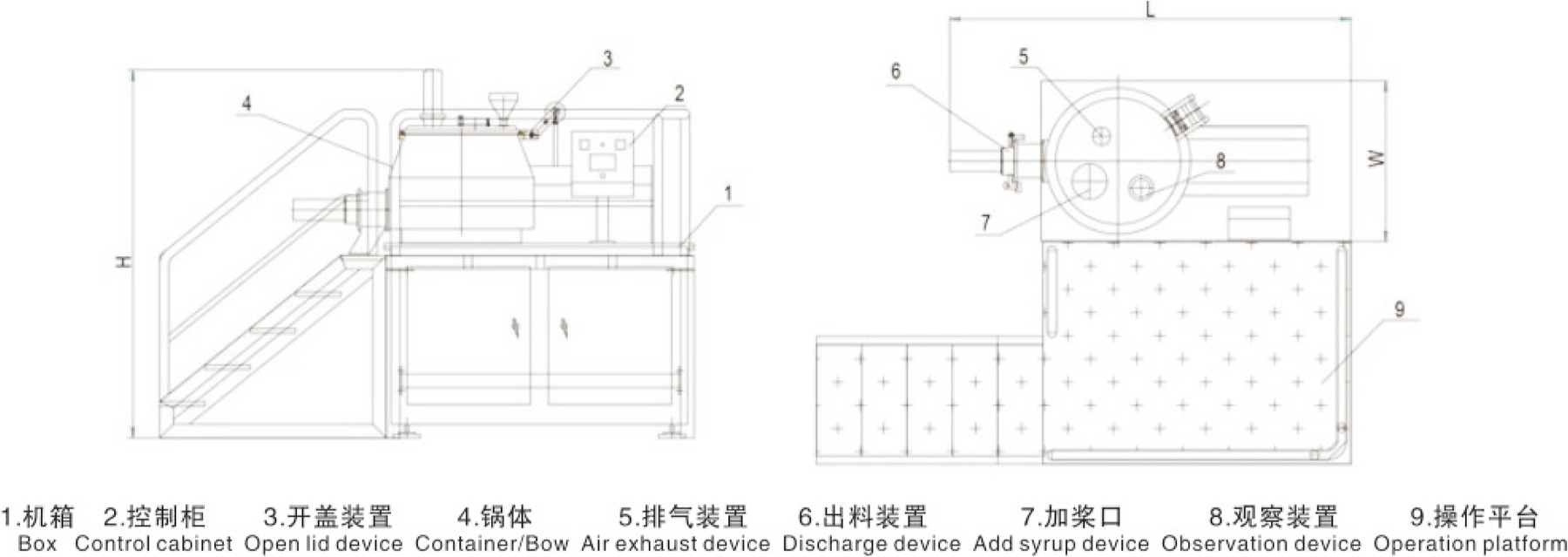

| Overall dimension of machine (L×W×H) | 800 × 450 × 900 | 1250 × 550 × 1160 | 1730 × 750 × 1610 | 1950 × 750 × 1810 | 1950 × 750 × 1810 | 2210 × 880 × 2000 | 2210 × 880 × 2000 | 2310 × 1050 × 2000 | 2485 × 1080 × 2050 | 2585 × 1400 × 2100 | |
Note: All parameters are for reference only, depending on material condition.
