Working Principle

Raw materials is fed into the machine from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out hot heat exchange with damp raw material. Then the damp air is exhausted out through cyclone seperator and duster and the dry raw material is discharged through discharge outlet.

Features

● The vibration is created by motor. Lt is stable in operation and convenient in maintenance, low noise and long life.

● High Effection, raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.

● It is good in regulation and wide in suitability. The thickness of raw material layer and movable speed inside the machine and the amplitude can be adjusted through continuos variable speed.

● It is small for danaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials have anomly shape.

● It is effective to prevent cross pollution between raw material and air because the equipment adapts fully closed stucture. The environment of operation is clean.

● You can string multi-set to rasied capacity of raw materials, such as polyacrylamide.

Application

Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid, maleic acid and so on;

Foodstuff and construction material industries: less, monosodium glutamate, edible sugar, edible salt, mine residue, bean, seeds and so on;

It can also used for raw materials to add up damp or cooling and so on.

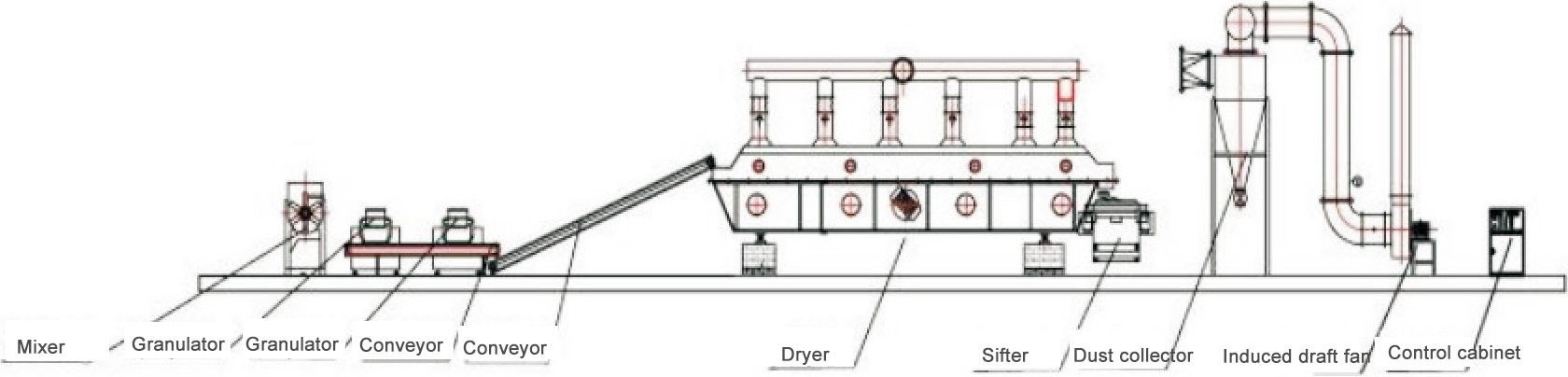

Chicken Essence Production Line

Our company maintains comprehensive partnerships with numerous domestic food research institutes and universities, enabling us to provide small and medium-sized enterprises with services such as chicken essence formulations, process improvements, and facility and equipment planning. We firmly believe that: Only through the perfect integration of formulation, process, and equipment can high-quality products be produced.

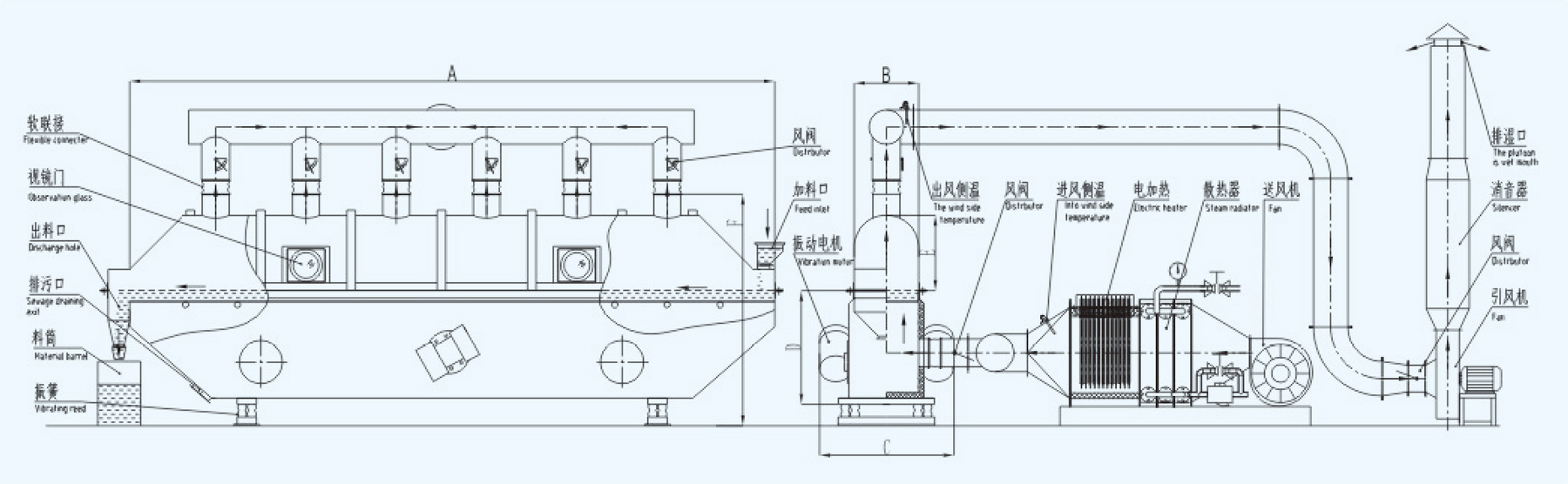

Skech of oven

Technical Parameters
