It is mainly applicable to the mixing test between dry powders, particles or between powders and particles of different components in the laboratory. It is an ideal model for exploring material mixing process parameters and an advanced experimental equipment for mechatronics.
The HSD laboratory mixer is installed on a movable base. The main components include frame, slewing system, electrical control system, hopper, etc. The conical mixing hopper is mainly composed of bucket body, bucket cover, clamp, butterfly valve, etc.
● The mixing bucket is connected with the main engine by quick unloading, which is convenient for installation and disassembly.
● Different mixing hoppers can be configured without frequent material transfer, feeding and other procedures to meet the needs of experimental testing.
● PLC automatic control, automatic mixing, automatic positioning, humanized control operation.
● The whole machine has no sanitary dead corner, and the exposed material is made of high-quality austenitic stainless steel, which fully meets the GMP requirements of drug production

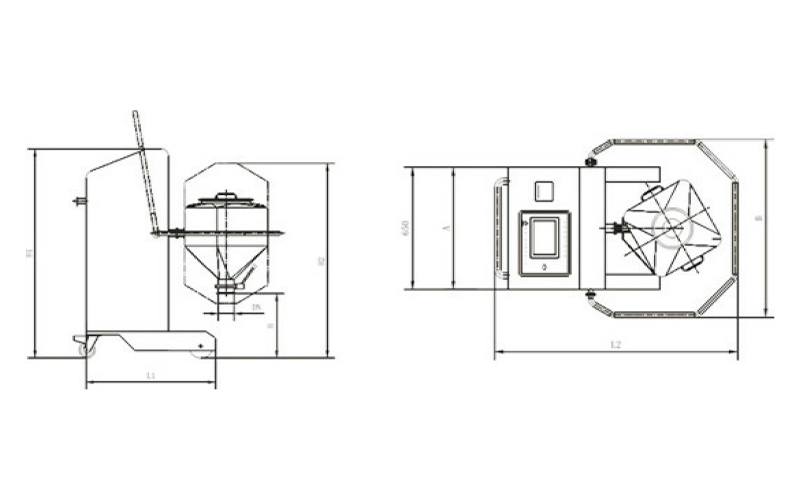

| Model | Main structural dimensions | Net load | Speed | Power | Weight | ||||||||
| A | B | DN | L1 | L2 | H | H1 | H2 | L | Kg | rpm | Kw | T | |
| HSD-50 | 650 | 950 | 100 | 800 | 1280 | 400 | 1300 | 1210 | 50 | 25 | 3-15 | 0.37 | 0.4 |
| HSD-100 | 700 | 1100 | 150 | 1000 | 1450 | 500 | 1300 | 1450 | 100 | 50 | 3-15 | 0.75 | 0.6 |
