Working Principle

The machine is composed of base, rotating body, driving system, lifting system, braking system and control system. When working, push the mixing hopper into the rotary body and press the "OK" key on the touch screen to automatically lift the mixing hopper in place and clamp it automatically. After the pressure sensor receives the clamping signal, it drives the mixing system to work, and the mixing system mixes according to the set time and speed; After reaching the set parameters, the rotating body can automatically stop vertically, and the braking system works at the same time, and the mixing is completed; Then lift the system to work. The mixing hopper in the rotary body drops in place, stops automatically, prints process data, and pushes the mixing hopper to the next process.

Features

● The rotary body (mixing hopper) forms an included angle of 30° with the rotary axis. The materials in the mixing hopper turn around with the rotary body and move tangentially along the bucket wall at the same time, resulting in strong turnover and high-speed tangential movement, so as to achieve the ideal mixing effect. It is fully automatic controlled by PLC, and equipped with the discharge butterfly valve of infrared safety device and anti misoperation device to ensure production safety. Materials can pass through different process segments in the same container without frequent transfer, feeding and other procedures. Effectively control dust and cross pollution, reduce material loss, control material stratification, optimize the production process, and fully meet the GMP requirements of drug production.

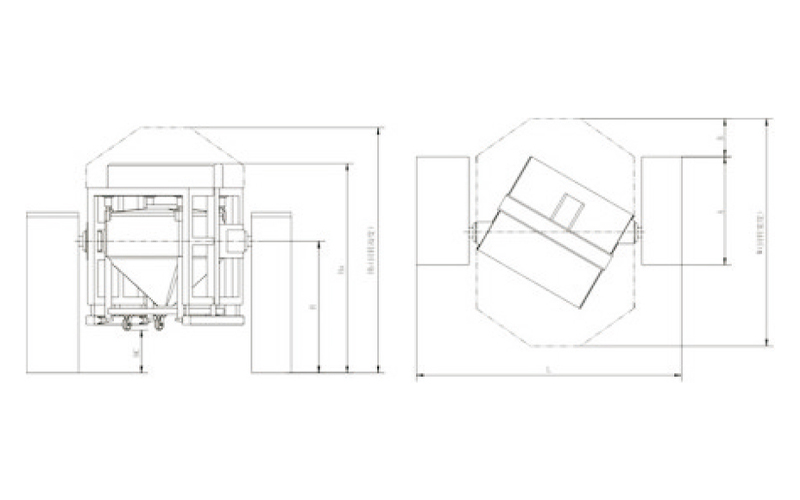

Technical Parameters
