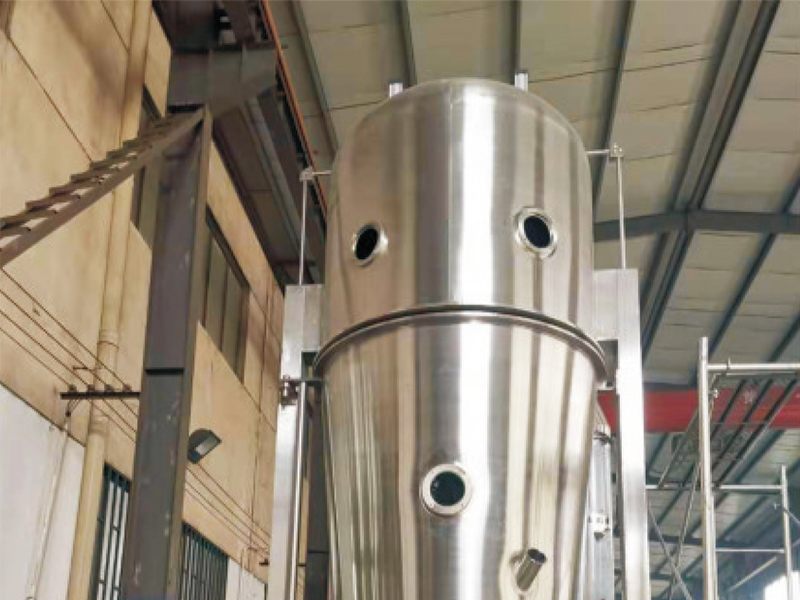

Fluid - bed coater is a new style coating equipment that combined fluidbed spraying technology and coating well. It is widely used for film slow and control releasing coating, framework slow and control releasing capsule, pellet coating, granule, powder coating, etc.
● Coating of bottom spraying, material flow in order, we can get uniform and continuous film.
● Taste masking, odor, moistureproof, antioxidation, prevent water, heat insulation, coloration and separation coating.
● Low productive cost, and the coating material is used perfectly.
● Short travel distance of fog granule and without the problem of "spray drying".
● The design of cylinder for accelerator or cone for decelerate can Coating of granule, big granule and pellets.
● The high separate, without adhere.
| Item / Specification | 1 | 3 | 5 | 15 | 30 | 60 | 120 | 200 | |
| Capacity | kg/batch | 0.3–1.5 | 1.5–4.5 | 4–6 | 10–20 | 25–40 | 40–80 | 80–150 | 150–250 |
| Volume of Container | L | 5 | 10 | 15 | 50 | 100 | 220 | 360 | 650 |
| Power of fan | kw | 2.2 | 3 | 4 | 5.5 | 7.5 | 15 | 18.5 | 22 |
| Consumption of steam | m³/min | 0.3 | 0.3 | 0.4 | 0.6 | 0.9 | 1.3 | 1.8 | 2.4 |
| Consumption of steam | kg/h | Electricity 3kw | Electricity 6kw | 50 | 64 | 85 | 181 | 250 | 330 |

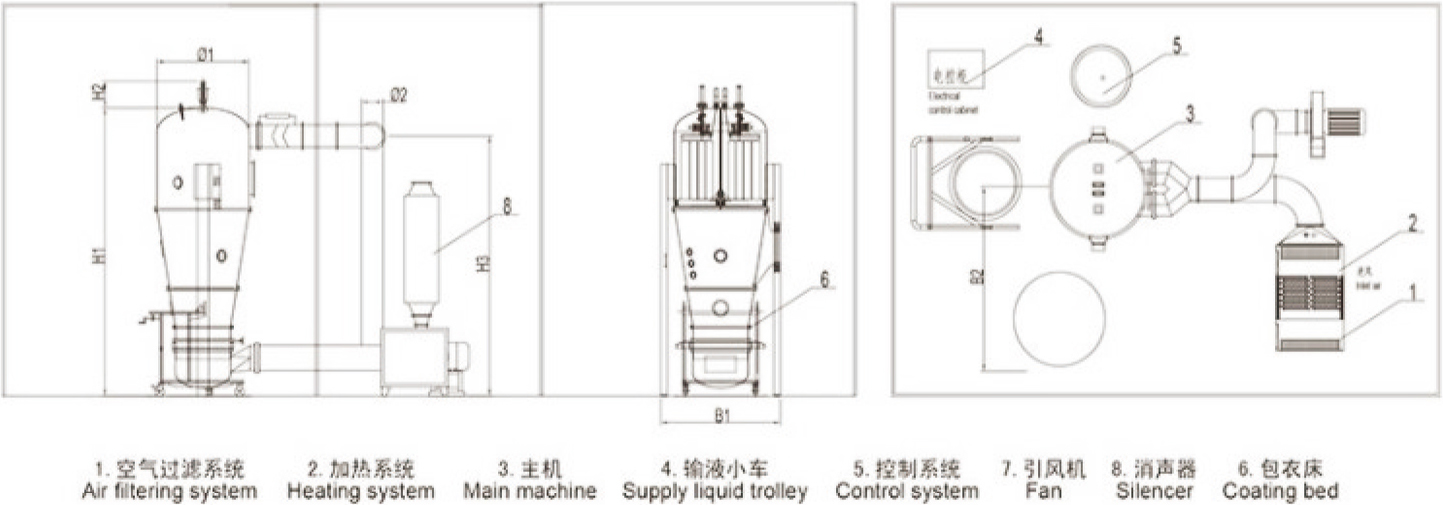

| Size of installation for reference | H₁ (mm) | 2600 | 2600 | 2600 | 2850 | 3150 | 3250 | 3500 | 3800 |
| H₂ (mm) | 340 | 490 | 590 | 790 | 890 | ||||
| H₃ (mm) | 2630 | 2930 | 3020 | 3280 | 3580 | ||||
| B₁ (mm) | 750 | 750 | 1160 | 1460 | 1660 | 2060 | 2260 | ||
| B₂ (mm) | 1560 | 1860 | 2460 | 2860 | 3660 | ||||
| φ1 (mm) | 300 | 400 | 550 | 700 | 1000 | 1200 | 1600 | 1800 | |
| φ2 (mm) | 150 | 180 | 180 | 250 | 250 | 280 | 280 | 315 | |
| L (mm) | 800 | 850 | 850 | 1550 | 1700 | 1800 | 2000 | 2100 | |
Note: all dates are used for referencen only. according to the condition of material, factory has the right to change but not notice, pardon!
