This machine is mainly used for conveying and feeding solid materials in pharmaceutical industry. It can be used with mixer, tablet press, coating machine, capsule filling machine and other equipment. At the same time in the chemical industry, food and other industries widely used.
The machine is mainly composed of rotating chassis, column, lifting system, turnover system and so on. When working, the bucket and the hoist clamp are first buckled, and then the lifting button is activated to lift the bucket. When the handle is turned over, the bucket can be turned 180°, and the connecting place of the column and the feeding equipment is rotated to open the butterfly valve for discharging the material, material transfer to next working equipment.
● The Shell is made of high quality Austenitic stainless steel, no sanitary dead angle, no convex and concave, reasonable structure, stable performance, optimized production process, no dust emission, no leakage, effective control of dust and cross-contamination.

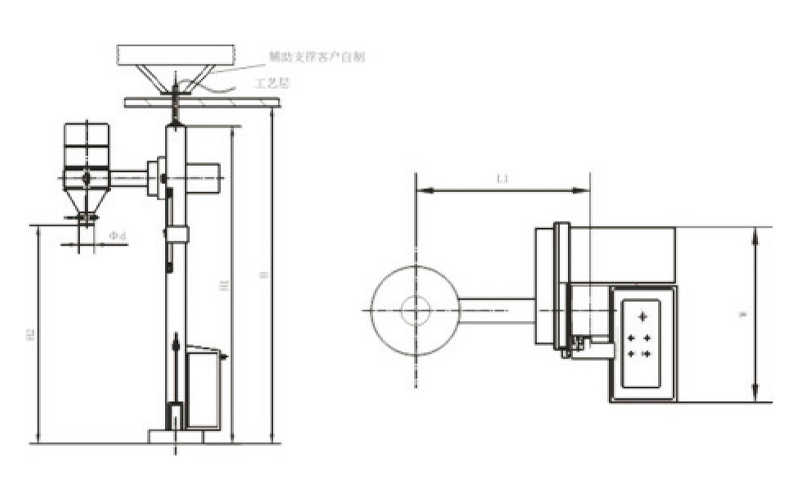

| Model | Main structural dimensions | Net load | Power | ||||||
| H | H1 | H2 | L | L1 | W | d | kg | kw | |
| NTB-50 | 3500 | 3300 | 2200 | 1570 | 900 | 930 | 150 | 30 | 1.87 |
| NTB-100 | 3500 | 3300 | 2200 | 1570 | 900 | 930 | 150 | 65 | 1.87 |
| NTB-150 | 3500 | 3300 | 2200 | 1630 | 900 | 930 | 150 | 100 | 1.87 |
| NTB-200 | 3500 | 3300 | 2200 | 1630 | 900 | 930 | 150 | 130 | 1.87 |
