The dry strength is large and investment of equipment is saving: equipment manufactured: 50-1500kg/h.
The dry strength is large and investment of equipment is saving: equipment manufactured: 50-1500kg/h.
The automatic content is high and the quality of product is good: the raw material to bedried is inside the pipe. The dry time is short (only 0.5~2 seconds). So that the automatic can be realized. The raw material can not contact with outer substances. So the pollution is small and the quality of product is good.

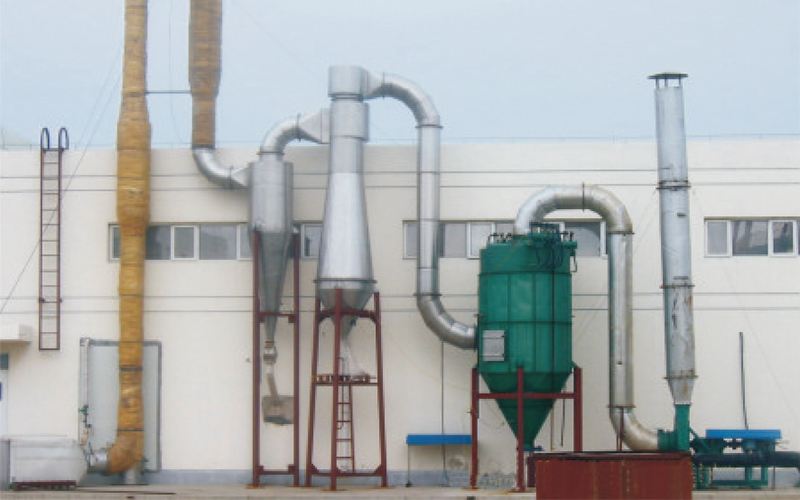

The equipment will be supplied completely and the heat soure can be chosen freely: The basic type consists of filer, heater, feeder, drying pipe, fan and cyclone separator, Customer can install duster and other auxiliary equipment in accordance with practical conditions. On the choice of heating way, air stream drier has wide suitability.
Customer can choose steam, electricity and air-heated furnace to heat in accordance practical conditions. Meanwhile it should be chosen in should be chosen in accordance with the temperature of raw material to be resisted (or temperature of hotair: if≤150℃, chose steam to heat, if≤200℃, electric or steamand electric as supplement or heat conduct oil); if≤300℃, coal air-heated furnace; if≤600℃, oil air-heated furnace.
The equipment can meet different need of raw materials. Besides the mentioned raw materials in basic model, there are hymenal, A, B, C intermediate, ABS resin, white carbon black, tea, catalyst of oxalic acid, promote agent m, d, m, catalyst, deposited carbon powder, N-acetyl-sulfanily chloride, paminosalicylic acid, p-phthat ic acid, diethyl aniline, titanium dioxide, active carbon, sodium fluosilicate, ammonium sulphate, powder of silicon glue, synthesis resin. Calcium suiphate, PP resin, aureomycin, sodium polysilicate, or glucose, sodium sulphate, mine of sulphate, mine of phosphorus, BB blue, melting phosphorus fertilizer, tetracycine, ferric oxide, calcium carbon ate, titanium ferric mine, copper mine, powder of white potato. Tail coal, sterate, zein, medicine, medical agent, ferric oxide, lees residue and so on.

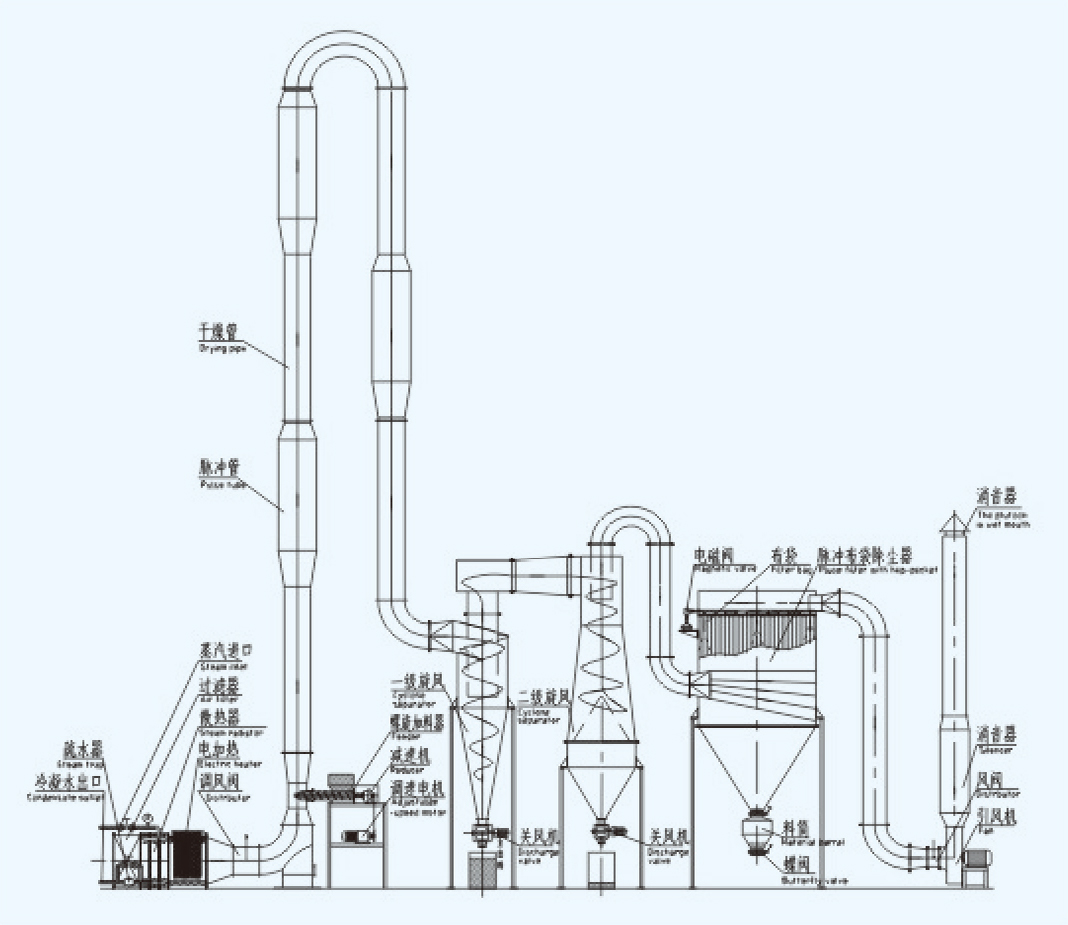

It is a kind base type, suitable for drying granule and adhesive property powder. The aketch is negative stream drying, and you can choose positive stream drying.
| Model | Moisture to be evaporate (kg/h) | Equipped power (kw) | Area of install (m²) | Height (m) |
| QG50 | 50 | 7 | 20 | 9 |
| QG100 | 100 | 13 | 32 | 11 |
| QG200* | 200 | 21 | 40 | 11 |
| QG250 | 250 | 24 | 64 | 13 |
| QG500* | 500 | 43 | 96 | 13 |
| QG1000* | 1000 | 100 | 120 | 15 |
| QG1500* | 1500 | 150 | 200 | 16 |
Note: market with* has two grade for drying. Its power and area to be occupied can be calculated with the heat form of steam.
