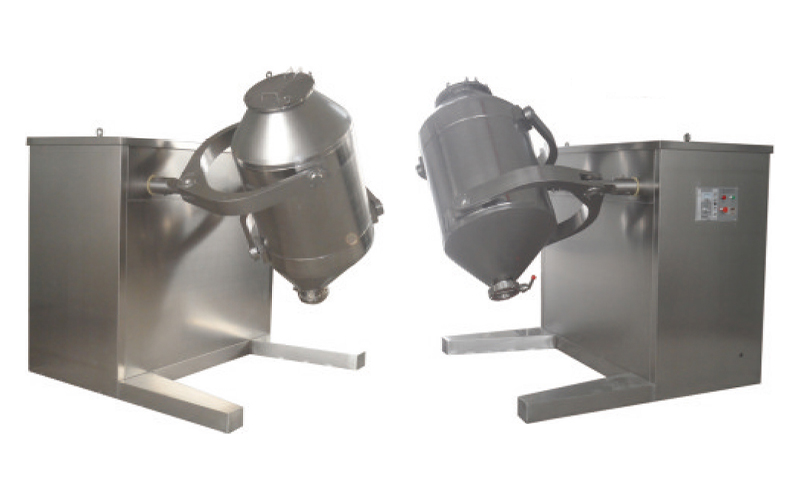

Driven by the driving shaft, the loaded cylinder makes repeated composite movements such as translation, rotation and tumbling, so as to promote the composite movement of materials along the cylinder, so as to realize the mutual flow, diffusion, accumulation and doping of various materials, so as to achieve the purpose of uniform mixing.
Driven by the driving shaft, the loaded cylinder makes repeated composite movements such as translation, rotation and tumbling, so as to promote the composite movement of materials along the cylinder, so as to realize the mutual flow, diffusion, accumulation and doping of various materials, so as to achieve the purpose of uniform mixing.
● The mixing cylinder of the machine moves in multiple directions, and the materials have no centrifugal force, specific gravity segregation, stratification and accumulation. Each component can have a very different weight ratio, and the mixing rate is more than 100%. It is an ideal product in various mixers at present. The charging rate of the cylinder is large, up to 90% (only 40% for ordinary mixer), with high efficiency and short mixing time.
● All parts of the cylinder are arc transition, which has been precisely polished.
● It is used for high uniformity mixing of powdery and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, national defense industry and various scientific research institutions.
| Model | SYH-5 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1500 |
| Material barrel volume (L) | 5 | 100 | 200 | 400 | 600 | 800 | 1000 | 1500 |
| Max loading volume (L) | 4 | 80 | 150 | 300 | 450 | 600 | 750 | 1200 |
| Max loading weight (kg) | 5 | 80 | 150 | 200 | 300 | 400 | 500 | 750 |
| Spindle rotation speed (r/min) | 24 | 15 | 12 | 10 | 10 | 10 | 10 | 10 |
| Motor power (kw) | 0.37 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 |
| Overall dimensions (mm) | 600 × 1000 × 1000 | 1200 × 1800 × 1500 | 1300 × 1600 × 1500 | 1500 × 2200 × 1500 | 1850 × 2500 × 1650 | 1900 × 2400 × 2100 | 1950 × 2500 × 2400 | 2600 × 2500 × 2350 |
| Weight (kg) | 150 | 500 | 750 | 1200 | 1500 | 1650 | 1800 | 2500 |
