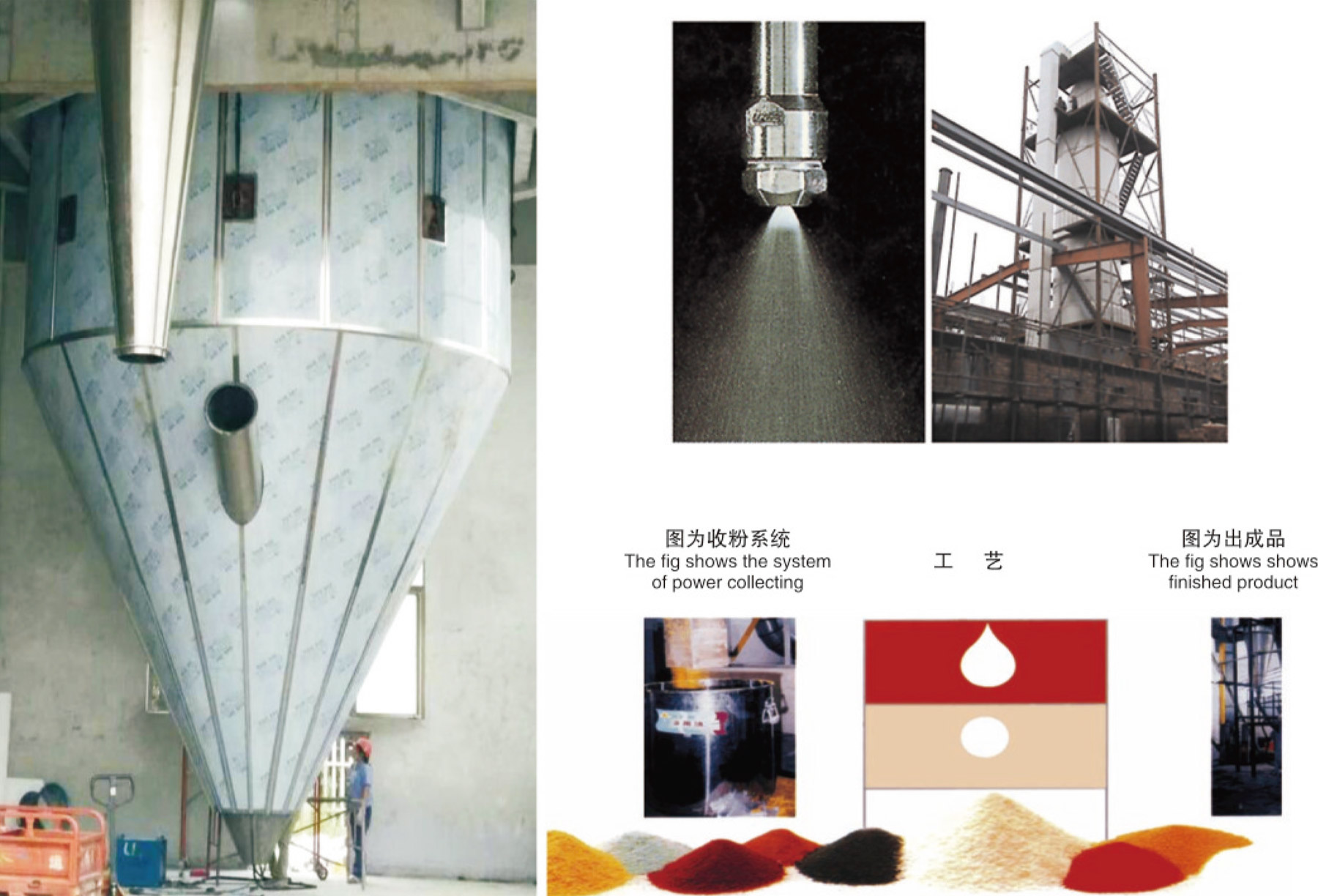

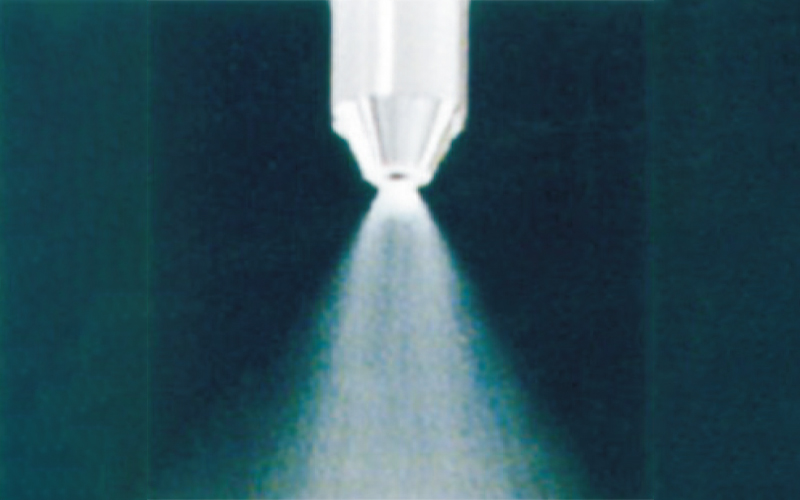

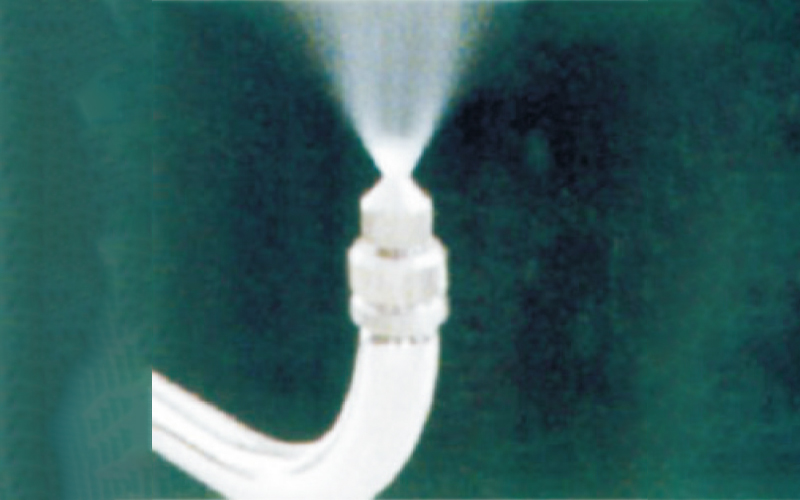

He feed liquid is pumped through a diaphragm pump under high pressure to spray out a spray-like droplet, which then flows down together with the hot air. Most of the powder particles are collected at the bottom of the tower by a discharge port.
He feed liquid is pumped through a diaphragm pump under high pressure to spray out a spray-like droplet, which then flows down together with the hot air. Most of the powder particles are collected at the bottom of the tower by a discharge port. The waste gas and its tiny powder are separated by a cyclone separator, and the waste gas is discharged by an exhaust fan, the powder is collected by the pollination tube at the lower end of the cyclone separator. The outlet of the FAN can be equipped with a secondary dust removal device. The recovery rate is over 96-98%.
● The drying speed is fast, the surface area of the liquid is increased greatly after atomization, in the hot air stream, the moisture of 95%-98% can be evaporated in an instant, the drying time only needs more than ten seconds to tens of seconds, especially suitable for the drying of heat-sensitive materials.
● All products are spherical particles, uniform particle size, good liquidity, good solubility, product purity, good quality.
● Wide Range of use, according to the characteristics of materials, can be used hot air drying, can also be used cold granulation, the adaptability of materials.
● The operation is simple and stable, the control is convenient, and the automatic operation is easy to realize.
Food, medicine, chemical industry, dyeing and Chemical Industry, Ceramics, biochemistry, pesticide, plastic and so on are suitable for the spray drying granulation of liquid with corresponding fluidity.
Chemical Industry: Catalyst, resin, synthetic washing powder, grease, ammonium sulfate, dyes, dye intermediates, white carbon black, graphite, ammonium phosphate and so on.
Food: Amino Acids and analogues, seasoning, protein, starch, dairy products, coffee extract, fish meal, meat essence, etc.
PHARMACEUTICAL: Chinese Patent Medicine, pesticide, antibiotic, medicine granule, etc.
CERAMICS: Magnesium Oxide, Porcelain Clay, various metal oxides, dolomite and so on.
SPRAY GRANULATION: all kinds of fertilizer, alumina, ceramic powder, pharmaceutical, heavy metal super-hard steel, fertilizer, granular washing powder, Chinese patent medicine.
Spray cooling granulation: Amino fatty acids, paraffin wax, glycerate, tallow, etc. Spray Crystallization, spray concentration, spray reaction is often used.
| Type | Unit | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| Evaported amount | kg | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| Overall dimensions (Φ×H) | mm | 1600×8900 | 2000×11500 | 2400×13500 | 2800×14800 | 3200×15400 | 3800×18800 | 4600×22500 |
| High-pressure pump pressure | Mpa | 2 ~ 10 | ||||||
| Power | KW | 8.5 | 14 | 22 | 24 | 30 | 82 | 30 |
| Inlet temperature | ℃ | 140 ~ 350 | ||||||
| Moisture content of product | % | |||||||
| Material recovery | % | >97 | ||||||
| Electric Heating | KW | 75 | 120 | 150 | When the temperature is below 200, according to the actual technology | |||
| Electricity+steam | Mpa+KW | 0.5+54 | 0.6+90 | 0.6+108 | 0.5+54 | 0.5+54 | 0.5+54 | 0.5+54 |
| Hot air furnace | Kcal/h | 100000 | 150000 | 200000 | 300000 | 400000 | 500000 | 1200000 |
