YYH Series One-dimensional Mixer from China Manufacturer - Changzhou Changhai Drying Equipment Co., Ltd.

Mixing Equipment

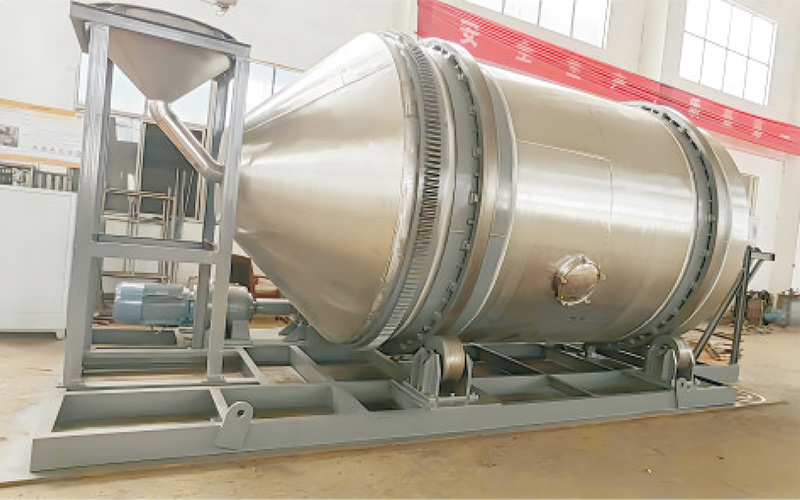

YYH Series One-dimensional Mixer

This machine is used for mixing powder and pellets in medicine, chemical industry, food, dye, feed, chemical fertilizer, pesticide and other industries.

Model: YYH

Request your customized solution

Features

● This machine is used for mixing powder and pellets in medicine, chemical industry, food, dye, feed, chemical fertilizer, pesticide and other industries.

● Simple structure and convenient operation.

● During operation, the charging cylinder rotates around the central axis (referred to as "one-dimensional motion") and the materials in the cylinder move in three dimensions, so the mixing accuracy of materials can be comparable to that of two-dimensional and three-dimensional motion mixers.

Technical Parameters

Type	Barrel volume (L)	Loading volume (L)	Charge weight (kg/batch)	Rotation speed (r/min)	Motor power (Kw)	Overall dimension (mm)	Gross weight (Kg)
YYH-50	50	25	13	0-18	0.55	920 × 440 × 540 × 350	250
YYH-150	150	75	37	0-16	0.75	1140 × 610 × 900 × 445	320
YYH-300	300	150	75	0-14	1.1	1340 × 760 × 990 × 520	410
YYH-600	600	300	150	0-13	1.5	1615 × 960 × 1100 × 630	490
YYH-800	800	400	200	0-12	2.2	1730 × 1070 × 1200 × 700	560
YYH-1000	1000	500	250	0-12	2.2	1900 × 1120 × 1300 × 710	740
YYH-1500	1500	750	375	0-12	3	2050 × 1300 × 1480 × 830	850
YYH-2000	2000	1000	500	0-10	4	2280 × 1420 × 1620 × 910	1050
YYH-3000	3000	1500	750	0-10	5.5	2505 × 1620 × 1830 × 1020	1380
YYH-4000	4000	2000	1000	0-8	5.5	3000 × 1800 × 2200 × 1300	1650
YYH-6000	6000	3000	1500	0-6	7.5	3400 × 2200 × 2500 × 1450	2300
YYH-8000	8000	4000	2000	0-6	11	3677 × 2300 × 2850 × 1630	3500
YYH-10000	10000	5000	2500	0-6	11	3800 × 2500 × 2950 × 1680	3800
YYH-12000	12000	6000	3000	0-6	15	4600 × 2700 × 3050 × 1700	4500
YYH-15000	15000	7500	3750	0-5	18.5	4730 × 2900 × 3100 × 1725	6000
YYH-20000	20000	10000	5000	0-5	22	6000 × 3200 × 3500 × 1920	8000

Note: the loading weight is calculated according to the specific gravity of 0.5g/cm³.
