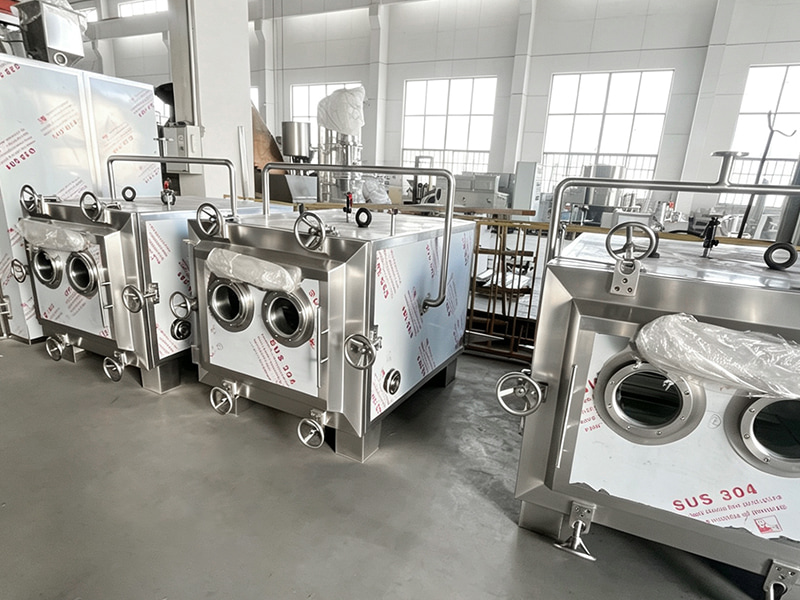

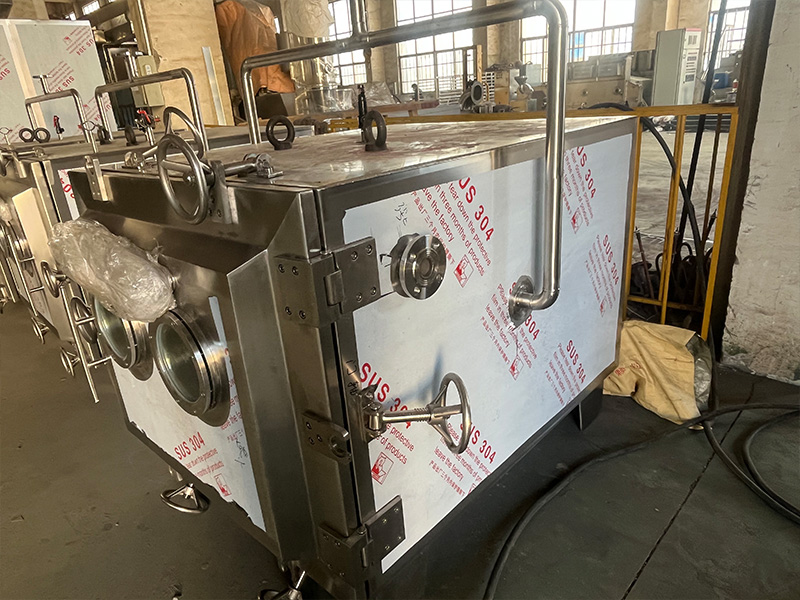

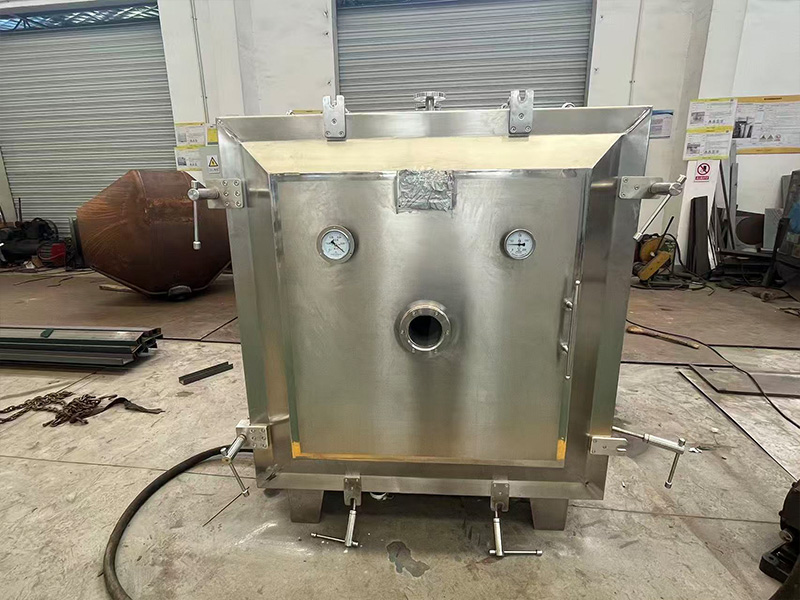

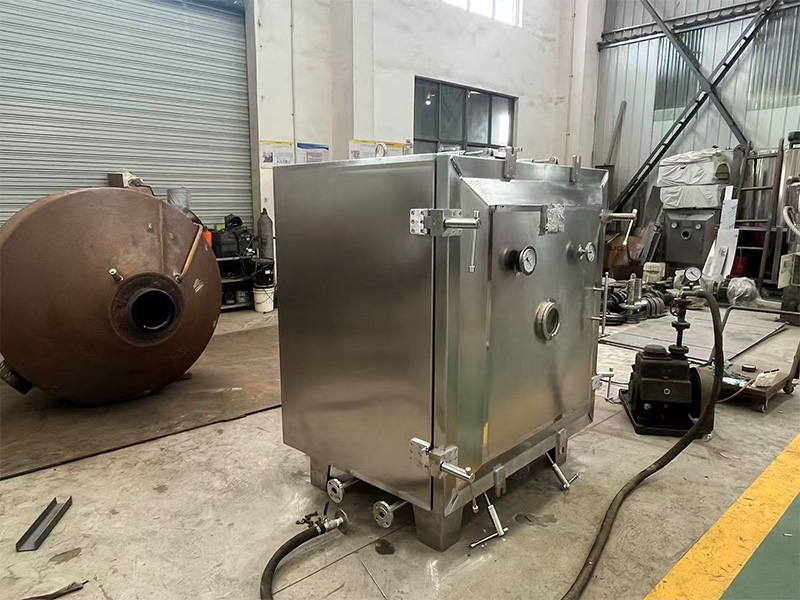

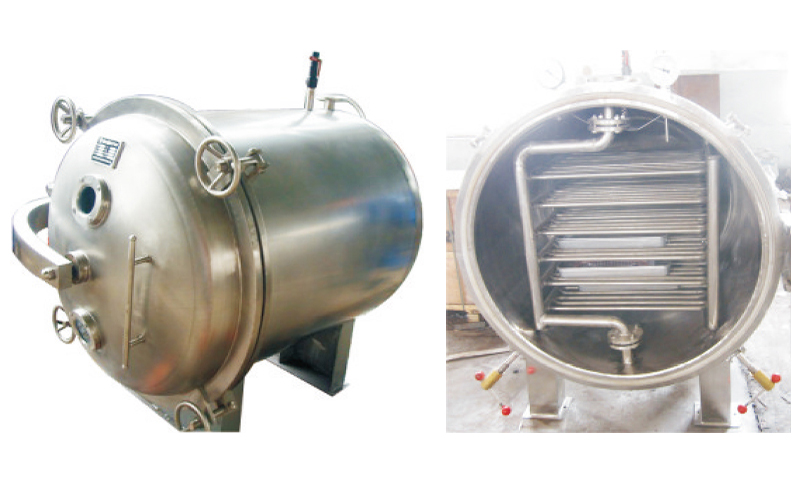

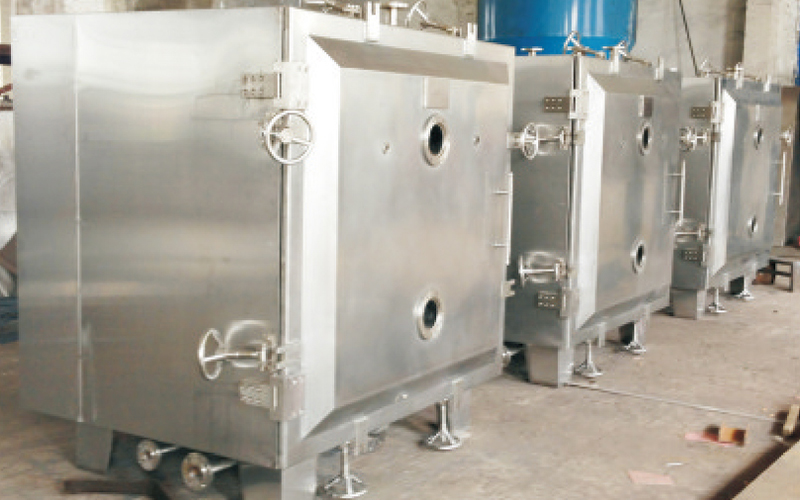

Round or square static tray-type vacuum drying for small batches, multiple products and heat-sensitive materials.

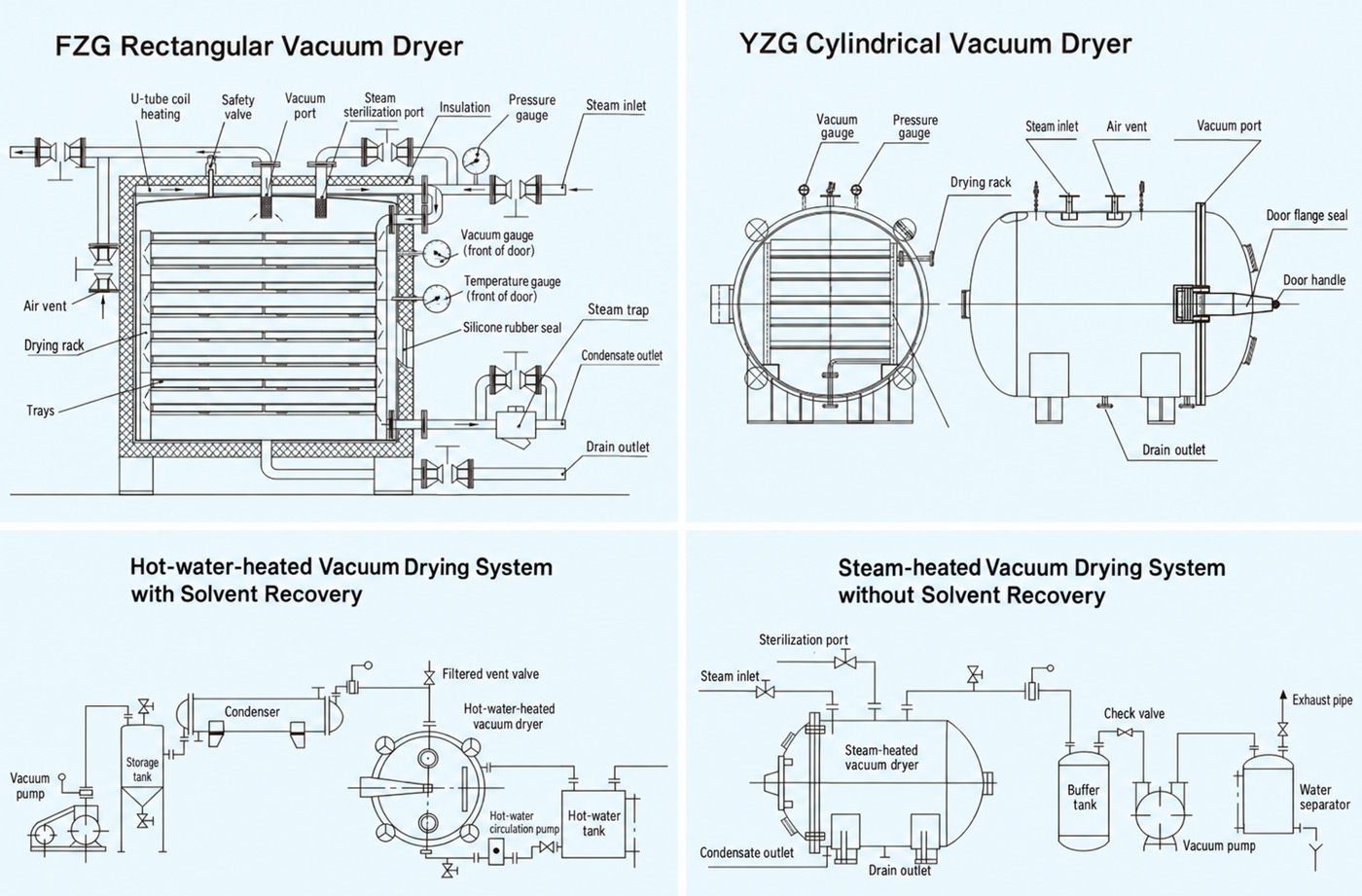

It is well known that vacuum drying is to put raw material to the state of vacuum for heating and drying. If use vacuum to take air and humidity out, the dry speed will be faster. Note: if use condensator, the solvent in raw material can be recovered. If useSK series water ring va uum pump or ZSWJ series hyeraulic inject vacuum pump sets. Condensator can not be usee and the investment could be saved.
● Under the condition of vacuum. The boiling point of raw material will decrease and make the pushing formc become greater. Therefore for a certain amount of heat radiation, the conducting area of evaporator can be saved;
● The heat source for operation of evaporation may be low pressure steam or surpl us heat steam;
● The heat loss of evaporator is less;
● Before drying, the treatment of disinfection may be varried. During the period or dring. There is no impurity material mixing. It is in conformity with the requireme nt of GMP;
● It belongs to static drier. So the shape of raw material to be dried can not be destroyed.
● If use condensate, the solvent in raw material can be recovered.
It is suitable for drying heat sensitive materials that can decompose and polymerize and metamorphose at high temperature. Lt is wide used in pharmaceutical, chemical, foodstuff and electronic industries.
| Name \ Model | YZG-600 | YZG-800 | YZG-1000 | YZG-1400 | FZG-10 | FZG-15 | FZG-20 |
| Inner size of drying chamber (mm) | φ600 × 976 | φ800 × 1247 | φ1000 × 1527 | φ1400 × 2054 | 1500 × 1040 × 1200 | 1500 × 1040 × 1200 | 1500 × 1800 × 1200 |
| Outer size of drying chamber (W × H × L) (mm) | 1153 × 810 × 1020 | 1700 × 1045 × 1335 | 1693 × 1190 × 1500 | 2386 × 1657 × 1920 | 1676 × 1700 × 1564 | 1500 × 2060 × 1564 | 1676 × 2500 × 1564 |
| Layers of baking support | 4 | 4 | 6 | 8 | 5 | 8 | 12 |
| Interval of each layer (mm) | 81 | 82 | 102 | 102 | 100 | 120 | 120 |
| Size of baking tray (mm) | 460 × 640 × 45 | 460 × 640 × 45 | 460 × 640 × 45 | 460 × 640 × 45 | 460 × 640 × 45 | 460 × 640 × 45 | 460 × 640 × 45 |
| Quantity of baking tray | 4 | 8 | 12 | 32 | 20 | 32 | 48 |
| Working pressure inside the pipe of baking support (MPa) | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 |
| Operation temperature of baking support (℃) | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 |
| Degree of vacuum inside the chamber when operation in idle (MPa) | −0.1 | −0.1 | −0.1 | −0.1 | −0.1 | −0.1 | −0.1 |
| Under the condition of −0.1 Mpa and 110℃, evaporation rate of water, kg/m².hr | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| When condenser is used, Model, and power of vacuum pump (kw) | 2X-15A/2KW | 2X-30A/3KW | 2X-30A/3KW | 2X-70A/5.5KW | 2X-70A/5.5KW | 2X-70A/5.5KW | 2X-90A/7.5KW |
| When condenser is not used, Model, and power of vacuum pump (kw) | SZ-0.5/1.5KW | SZ-1/2.2KW | SZ-1/2.2KW | SZ-2/4KW | SZ-2/4KW | SZ-2/5.5KW | SZ-2/7.5KW |
| Equipment weight (kg) | 250 | 600 | 800 | 1000 | 1400 | 2100 | 2300 |
The parameters above for reference only.
Notes to order:
When order, please choose suitable vacuum dryer in accordance with the characteristics of raw materials to be dried such as, physical properties, primary moisture, temperature, vacuum degree, amount to be dried, drying time, etc. The vacuum dryer with same models three types i.e., steam type, hot water type, heat conduction oil type. For example, in order to increase dry quantity, the quantity of layer of baking frame can be increased. Please put forward it to our factory.
