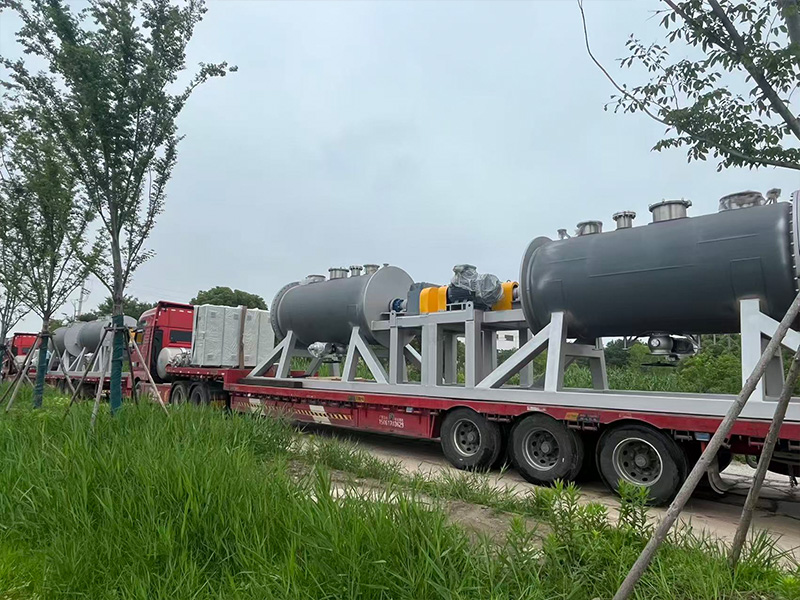

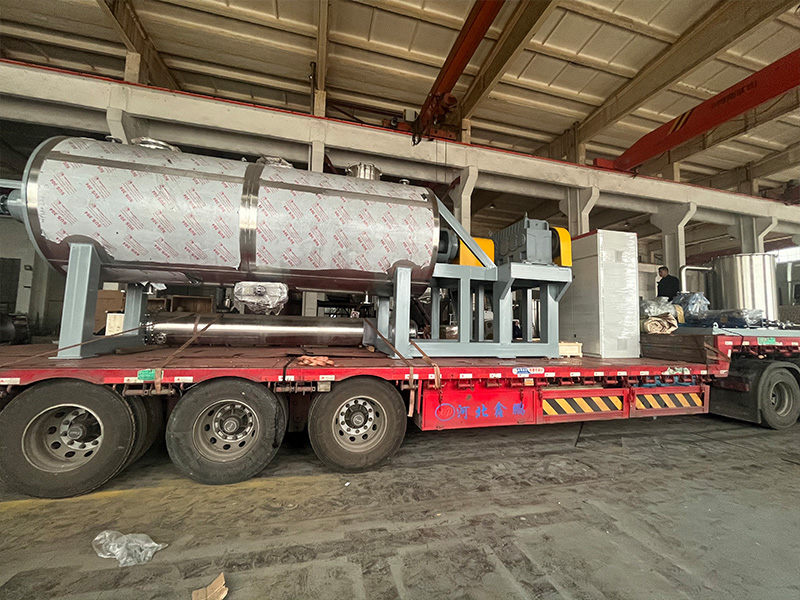

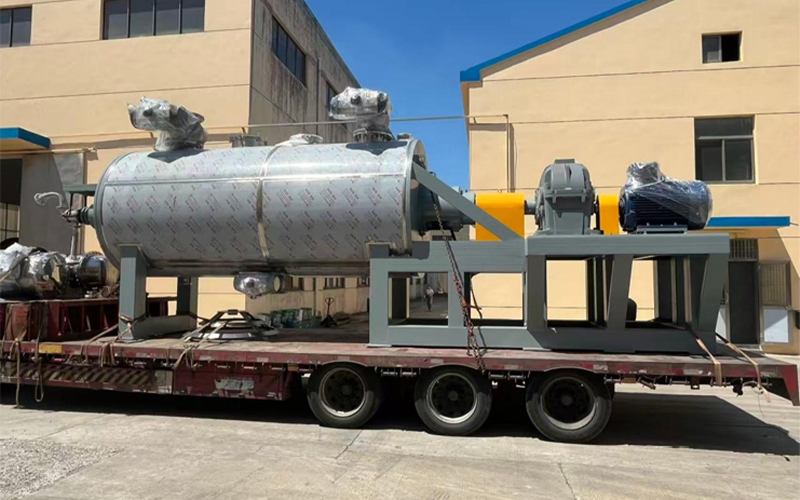

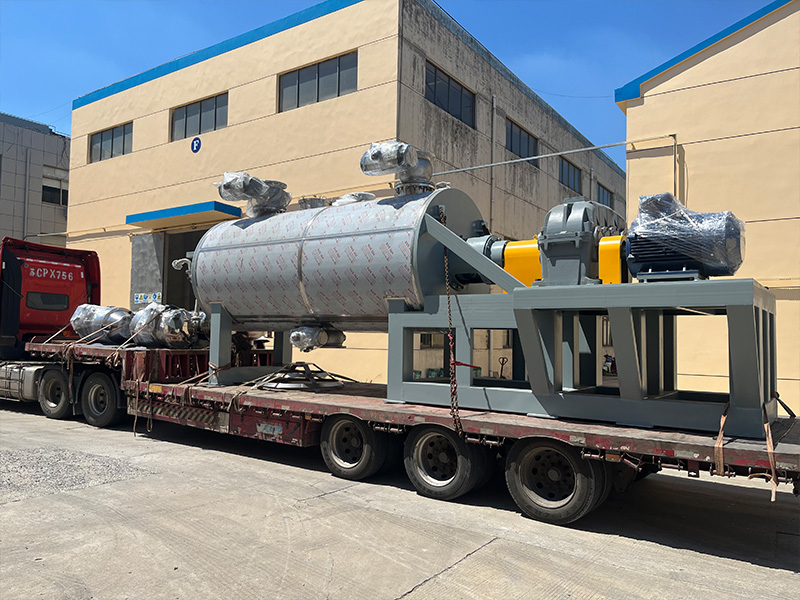

Horizontal batch vacuum drying with stirring for powders, pastes, slurries and filter-cake materials.

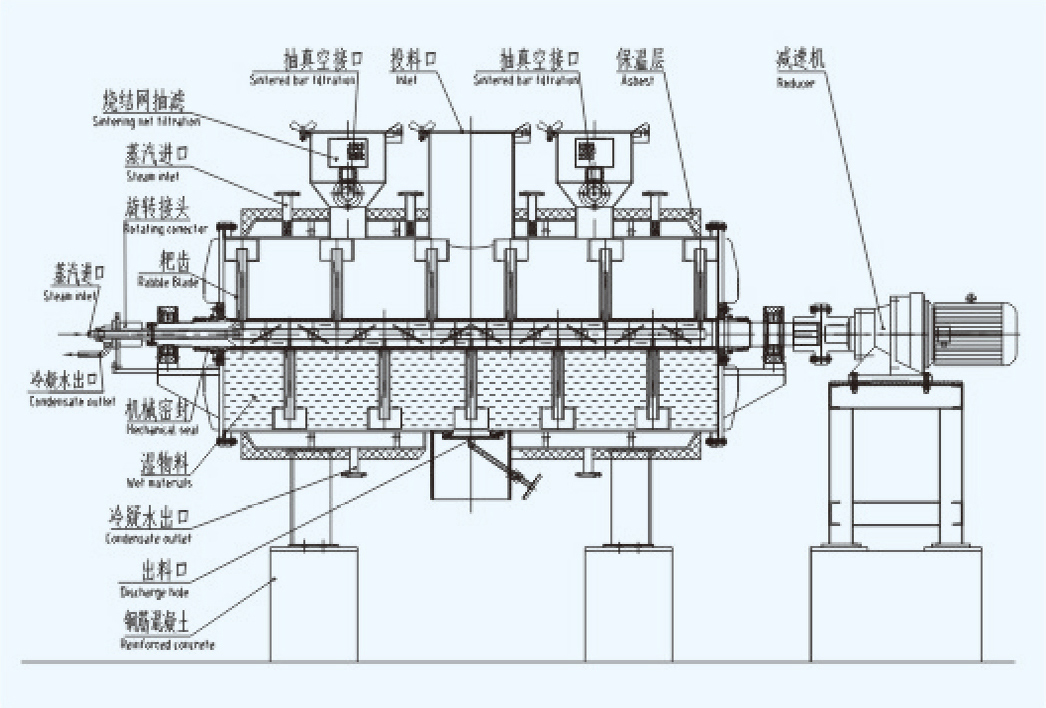

It is an innovation horizontal batch-type vacuum dryer. The moistureof wet material will be evaporated by heat transmission. The stirrer with squeegee will remove material on hotsurface and move in the containerto form cycle flow Theevaporated moisture will be pumped out by vacuum pump.
● Being adapted the big area heating way, its heat conducting area is large and its heat efficiency is high.
● Being installed stirring in the machine, it makes raw material in cylinder form the state of continuous circle inside the cylinder, so the uniformity to be heated of raw material is raised geatly.
● Being installed stirring in the machine, pulpiness, paste-like mixture or powderraw materials can be dried easy.
● Using the newest Two-stage type reducer to reduce power consumption while increasing the torque
● Special design of discharge valve, ensure when you mixing there is no dead angles in-tank.
The following raw materials from pharmaceutical industry, foodstuff industry, chemi-cal industry and so on can be dried Suitable for pulpiness, paste-like mixture or powder raw materials. Thermal sensitive raw materials having the requirement to dry at lower temperature. Raw materials that are easy to oxidize or explode and have strong irritative or toxic. Raw materials that need to recover solvent.
| Item | Type | |||||||||
| Name | Unit | ZPG-500 | ZPG-750 | ZPG-1000 | ZPG-1500 | ZPG-2000 | ZPG-3000 | ZPG-5000 | ZPG-8000 | ZPG-10000 |
| Working volume | L | 300 | 450 | 600 | 900 | 1200 | 1800 | 3000 | 4800 | 6000 |
| Size in the cylinder | mm | φ600 × 1500 | φ800 × 1500 | φ800 × 2000 | φ1000 × 2000 | φ1000 × 2600 | φ1200 × 2600 | φ1500 × 3000 | φ1600 × 4500 | φ1800 × 4500 |
| Heating area | ㎡ | 6 | 7.6 | 9.3 | 12.3 | 14.6 | 19.3 | 19.3 | 19.3 | 19.3 |
| Stirring revolution | rpm | 6-30 Stepless variable | ||||||||
| Power | kw | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 37 | 55 | 75 |
| Design pressure of jacket | Mpa | 0.3 | ||||||||
| Pressure in the cylinder | Mpa | −0.096−0.15 | ||||||||
Notes: the evaporated amount of water its related to the characteristics of raw materials and the drying temperature. With renew products unceasingly, the related parameter will be exchanged, it does not announce in advance, pardon!
