Engineered specifically for botanical and traditional Chinese medicine extracts, as well as similar high-viscosity, heat-sensitive liquid feeds.

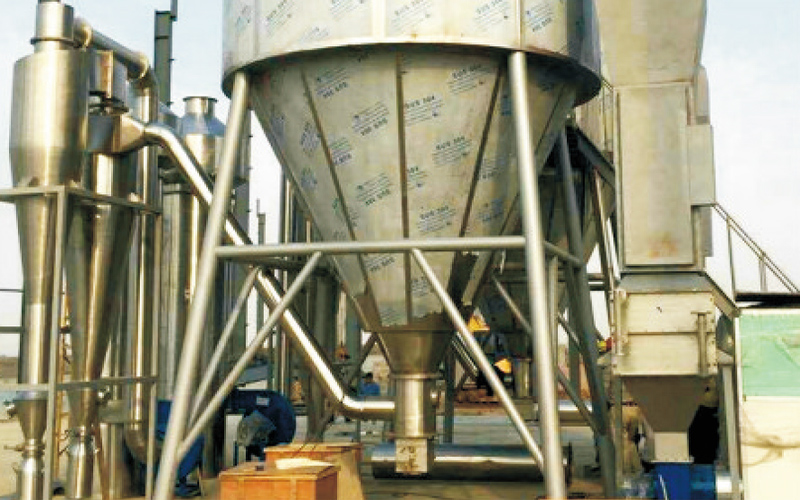

The machine adapts fully seal form. All parts are made of stainless steel. It is equipped with three grades of purifying apparatus. The filtered air reaches the requirement of one hundred thousand grades The cooling appetites of wall is installed at the cylinder boody and top. It makes the wall temperature less than 80℃, Air sweeping device is installed inside the drying tower. Thedried immrsedointment powder of traditional Chinese medicinecan not app ear the phenomenon of carbonization and degeneration. The ratio of received powder is raised greatly. Moreover it can not produce the phenomenon of medicine mixing and wall staying.

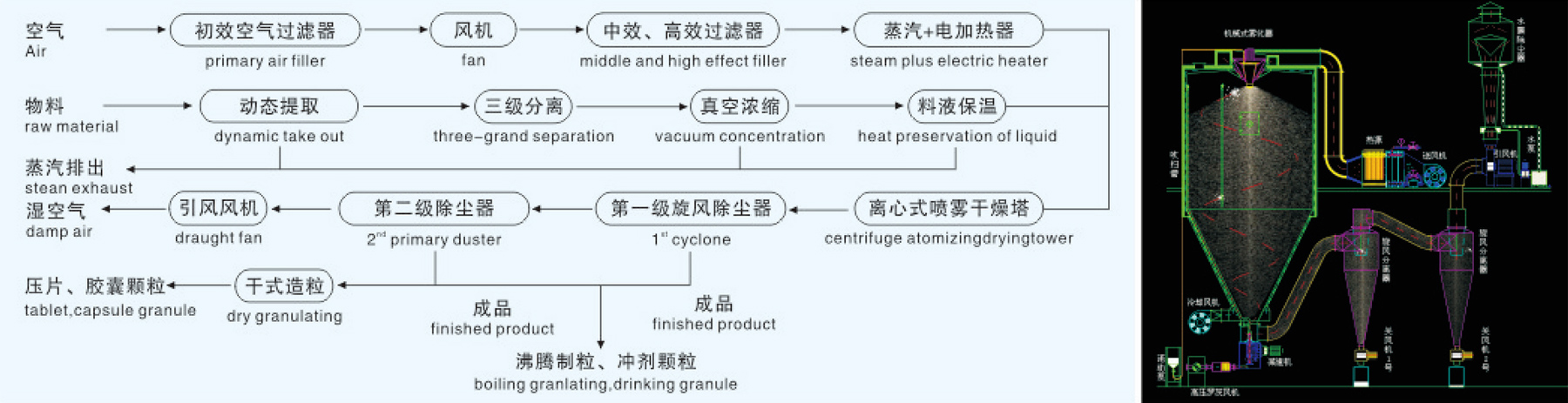

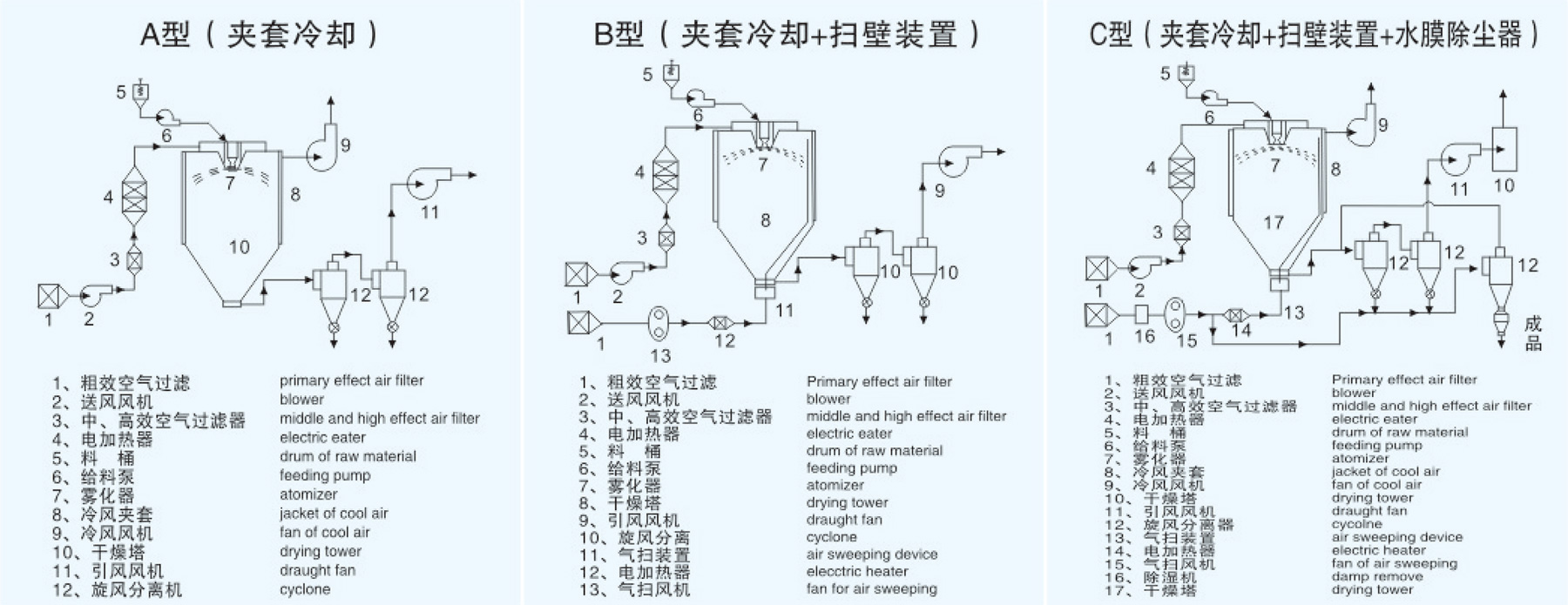

Baic principle: high-speed centrifuge atomizing apparatus for immesed ointment of traditional Chinese medicine is an application of centrifuge atomizing technique special raw material. It is an apparatus using highspeed atomizing drier.
1. Raw material is attached to wall and the ratio of received powder is low.
2. Because the staying time of raw material at wall is long, the phenomenon of carbonization and degeneration can be produced.
3. It is diffevet to clean and can not meet the requirement of GMP.
4. Low in output: Model LPG-150 atomizing centrifuge drier can process 50-60kg/h of raw material liquid. In view of this, ccording to the properties and process requirements of immersed ointment of traditional Chinese medicine, our factory researched and designed the special drier for immersed ointment of traditional Chinese medicine and won two items of china patent. It solves the historical difficult problems in drying immersed ointment of traditional Chinese medicine. The color of dried raw material is good. The dried raw material does not degenerate. It raises the economic benefit greatly. Compared with ordinary ZYG high-speed atomizing drier, it has the following features:
(1). Being adapted ten-grade air purification, the inlet air reaches the requirement of one hundred thousand grade;
(2). Being adapted wall cooling device, the temperature of inner wall will be 80℃, Even if raw material is stayed on the wall, it can not carbonize;
(3). Its whole volume is 3. 5 times of standard ZPG high-speed atomizing dryer.
(4). Being adapted quick washing device, it is can meet the requirements of production for varieties products.
(5). Being adapted air sweeping device, the clean effect is satisified.
(6). Being adapted air sweeping device, the clean effect is satisified.
(7). Equipped two sets of atomizer and adapted frequency control.
(8). Adopted PLC control and display, and adapted frequency control.
(9). Equipped with washing device.
(10). Adopt the seal method to transport dry air.
● Tower body has jacket of cool air;
● Tower body is equipped with automatic vibration and beating device;
● Tower body and pipe line have cleaning hole and swage dis-charge hole that can open quickly;
● Thermostat ending tank;
● Accompanied parts of high press ure washing tower;
● The parts that can contact with raw material are maed of stain-less steel fully;
● Thecollecting of raw material adapts two grade cyclone duster or one-grade cyclone duster and one-grade damp duster;
● The temperature of inlet air can be controlled automatically and continuously;
● Equipped with air sweeping device.
| Model | ZPG-5 | ZPG-10 | ZPG-25 | ZPG-50 | ZPG-80 | ZPG-100 | ZPG-150 | ZPG-200 | ZPG-300 | |
| Evaporated amount of moisture (kg/h) | 5 | 10 | 25 | 50 | 80 | 100 | 150 | 200 | 300 | |
| Handing amount of raw material liquid (kg/h) | 6-7 | 12-14 | 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-406 | |
| Output of finished product (kg/h) | 1-2 | 2-4 | 4.8-7.2 | 9.2-14 | 14.8-22.4 | 18.4-28 | 28-42 | 36.8-56.4 | 55-85 | |
| Solid content of damp raw material (%) | 18-25 | |||||||||
| Ratio of moisture of finished product (%) | 3-5 | |||||||||
| Electric power (kw) | 36 | 45 | 63 | 99 | 135 | 153 | 207 | 252 | 333 | |
| Heating source | Steam plus electricity | |||||||||
| Collecting way of product and Its efficiency | Two-grade cyclone duster or one-grade cyclone duster and one-grade damp duster ≥95% | |||||||||
| Automatic control meters and instruments | Indicator of temperature of hot air and humidity of air exhaust | |||||||||
| Temperature of air in (℃) | 150-200 | |||||||||
| Temperature of air out (℃) | 80-100 | |||||||||
| Overall dimensions (mm) | L | 5000 | 5500 | 7000 | 8000 | 9800 | 11000 | 12200 | 14100 | 15000 |
| W | 3000 | 3500 | 4000 | 5000 | 5700 | 6200 | 7000 | 7800 | 9000 | |
| H | 4500 | 4600 | 5200 | 6500 | 7600 | 8100 | 9000 | 9850 | 11100 | |
